Deskripsi

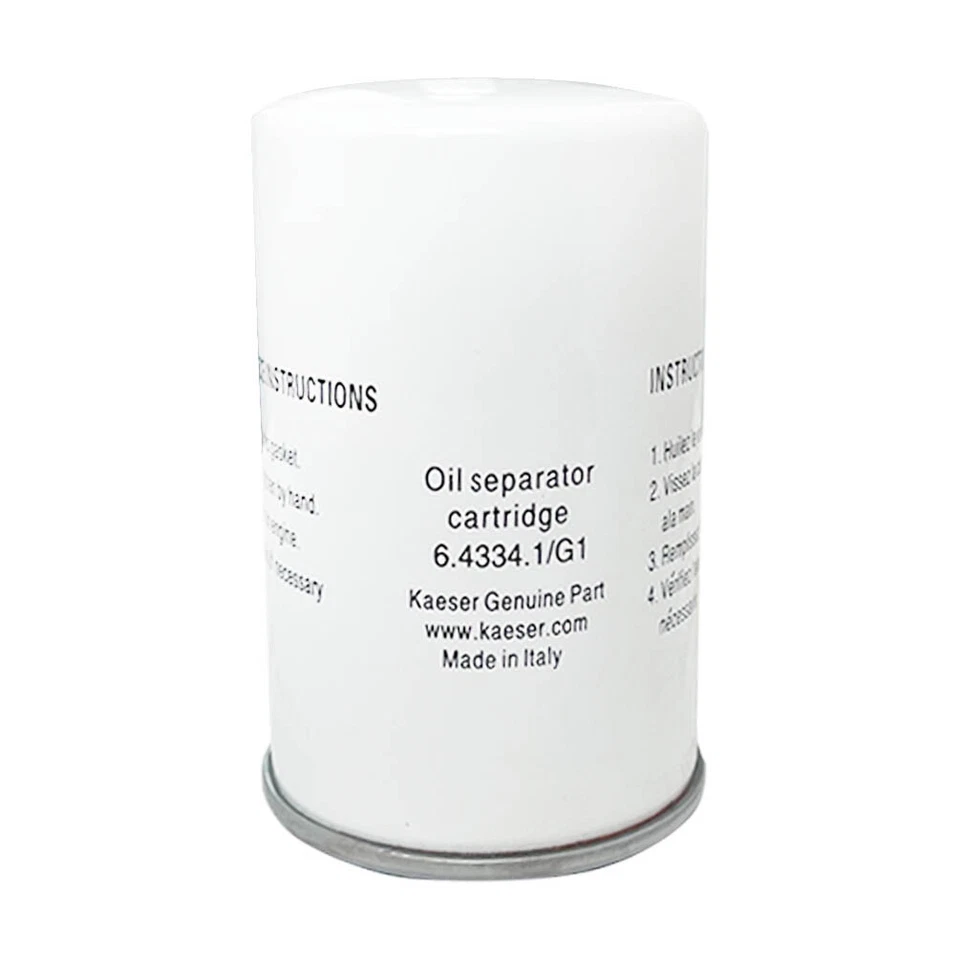

Kaeser Oil Separator 6.4334.1
1. Tabel Spesifikasi Teknis
| Parameter | Detail Spesifikasi |
|---|---|
| Nomor Suku Cadang | 6.4334.1 (6.4334.1/G1) |
| Tipe Filter | Spin-On Air/Oil Separator |
| Tinggi Total (Height) | 131 mm – 141 mm |
| Diameter Luar (OD) | 76 mm – 77 mm |
| Ukuran Ulir (Thread) | M23 x 1.5 (atau M23 x 1.75) Female |
| Efisiensi Filtrasi | 99.99% |
| Kandungan Oli Sisa | < 3 ppm (Residual Oil) |
| Masa Pakai (Service Life) | 2.000 – 4.000 Jam (tergantung kondisi kerja) |
| Suhu Maksimal | Hingga 120°C |
| Berat Bersih | ± 0.51 kg – 0.61 kg |
2. Tabel Kompatibilitas Unit
| Seri Kompresor | Model Spesifik |
|---|---|
| Kaeser SX Series | SX 3, SX 4, SX 6, SX 8 (Produksi pasca-2008) |
| Kaeser SXC Series | SXC 3, SXC 4, SXC 6, SXC 8 |
| Kaeser Aircenter | Aircenter SX 3, SX 4, SX 6, SX 8 |
| Kaeser Airtower | Airtower SX 6 |
| Kapasitas Motor | 2.2 kW – 5.5 kW (3 HP – 7.5 HP) |
3. Tabel Cross Reference
| Brand / Manufaktur | Part Number Ekuivalen |
|---|---|
| Kaeser (Old/Alt) | 6.4334.0, 6.4334.0/G1 |
| SF Filter | SPA 50064 |
| Mann Filter | LB 719/2 (Ekuivalen umum untuk seri ini) |
| Hifi Filter | OV 6088 |
| Edmac SKU | 3003975580 |
| Mako Airtek | 6.4334.1 |
