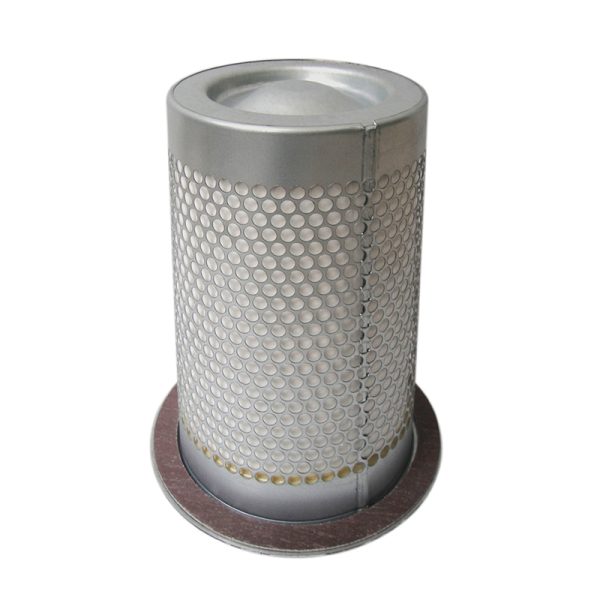

Kaeser Oil Separator 6.4272.2
1. Spesifikasi Teknis
| Parameter Teknis | Detail Spesifikasi |
|---|---|
| Nomor Part (PN) | 6.4272.2 / 6.4272.2/H |
| Tipe Filter | Flange Separator Element (Internal) |
| Tinggi (Height) | ± 330 mm |
| Diameter Luar (OD) | ± 170 mm |
| Diameter Flange | ± 200 mm |
| Material Media | Multilayer Borosilicate Glass Fiber |
| Efisiensi Filtrasi | 99,99% |
| Kadar Oli Sisa | < 2 ppm (Partikel oli sangat minimal) |
| Tekanan Kerja | Standar 7-15 Bar |
| Fitur Keamanan | Terintegrasi Grounding Conductors |
2. Kompatibilitas Unit
| Manufaktur | Seri Utama | Model Spesifik |
|---|---|---|
| Kaeser | ASK Series | ASK 27, ASK 32, ASK 35 |
| Kaeser | BSD Series | BSD 62, BSD 72, BSD 81 |
| Kaeser | BSD Series (Versi T) | BSD 62 T, BSD 72 T, BSD 81 T |
3. Cross Reference
| Manufaktur / Brand | Nomor Part (Equivalence) |
|---|---|
| Mann Filter | 49 301 55 241 (LB 13 145/20) |
| HIFI Filter | OV 6088 |
| Donaldson | P546631 |
| Sotek | ST-542 |
| Filpro | FE-64272.2 |
