Deskripsi

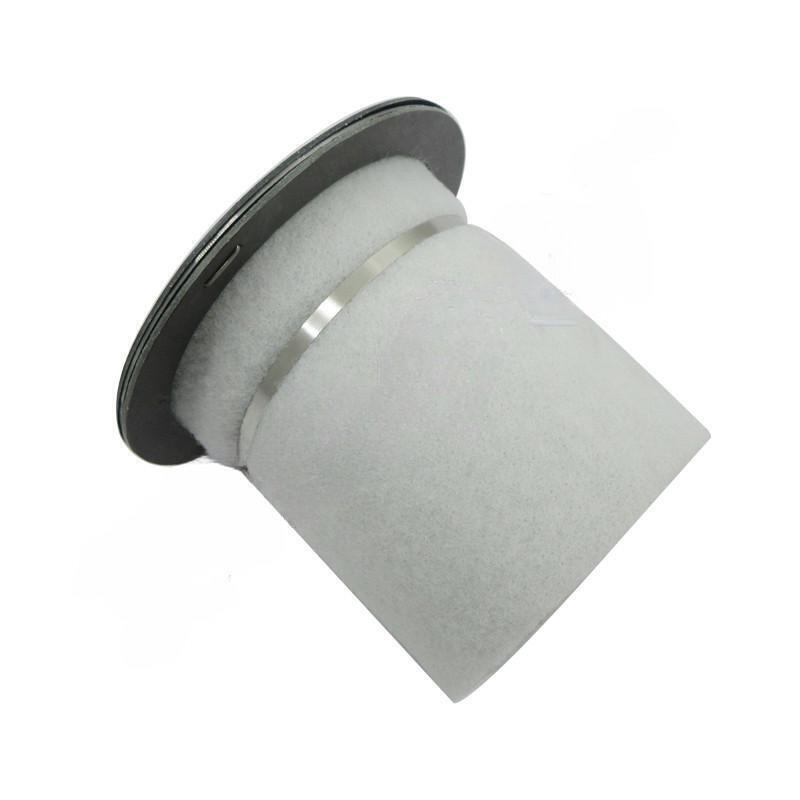

Kaeser Oil Separator 6.3795.1
1. Spesifikasi Teknis (Technical Specifications)
| Parameter | Detail Spesifikasi |
|---|---|
| Nomor Part (OEM) | 6.3795.1 / 6.3795.10010 (Kit) |
| Tipe Filter | Cartridge Element (Flange Style) |
| Tinggi Total (Height) | ± 111 mm (4.25 inci) |
| Diameter Luar Tabung (OD Body) | ± 96 mm – 100 mm |
| Diameter Luar Flensa (OD Flange) | ± 128 mm (5.03 inci) |
| Diameter Dalam (ID) | ± 40 mm – 41 mm |
| Rating Filtrasi | 0.3 Micron |
| Sisa Kandungan Oli | < 3 PPM |
| Material Media | Micro Glass Fiber Borosilicate |

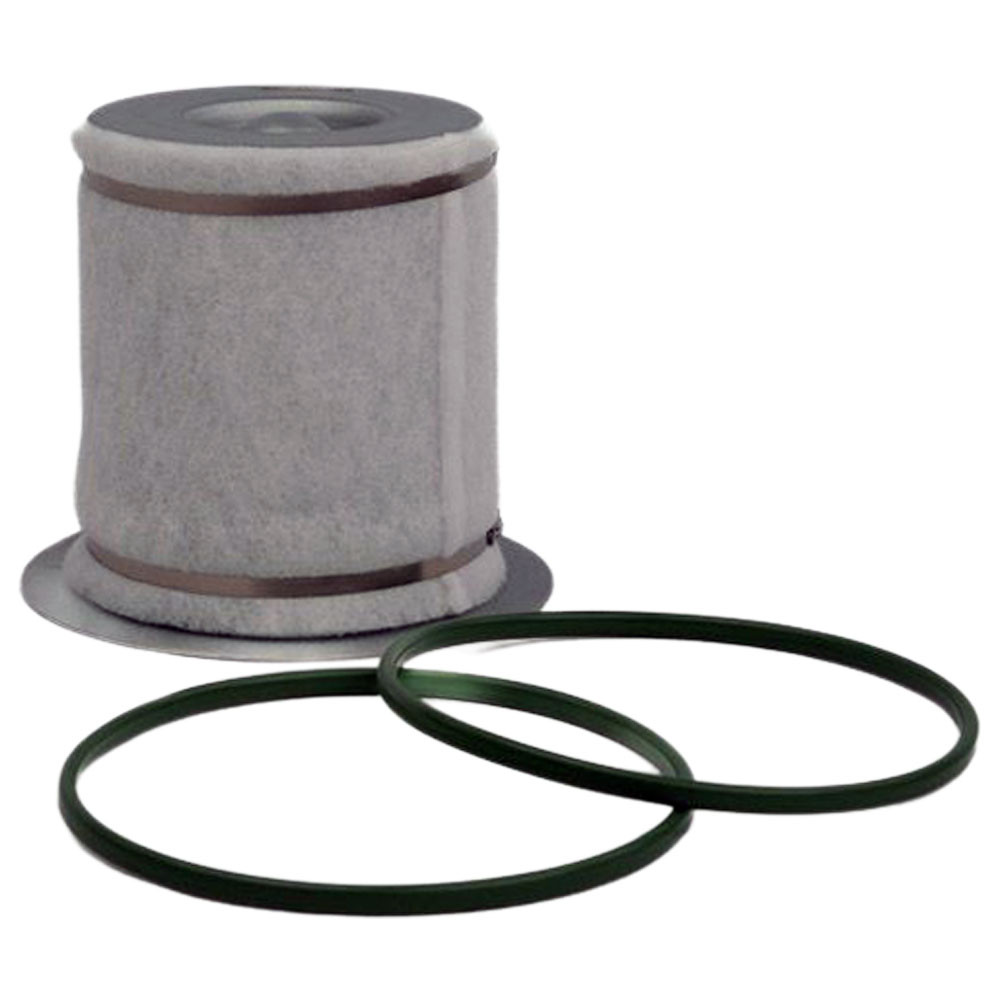

| Komponen Tambahan | Sering dijual dalam bentuk kit dengan 2 O-Ring & Strainer |
2. Kompatibilitas Unit (Unit Compatibility)
| Kategori Unit | Model Spesifik |
|---|---|
| Kaeser SM Series | SM 7.5, SM 8, SM 9, SM 10, SM 12, SM 15 |
| Kaeser Mobilair (Portable) | M13, M13E, M15 (New Model), M17 |
| Kaeser Mobilair (GX Engines) | M13 (GX 630), M15 (GX 630), M17 (GX 630) |
| Tipe Kompresor | Rotary Screw Compressor (Oiled) |
3. Referensi Silang (Cross Reference)
| Manufaktur / Brand | Nomor Part Alternatif |
|---|---|
| Kaeser (Original) | 6.3795.1 / 6.3795.0 / 6.3793.0 |
| HIFI Filter | OE 3018 (Series) |
| Mann-Filter | 49 601 55 131 |
| Sotras | DB 2110 |
| Donaldson | P782809 |
| Wix | 57077 |
| Fleetguard | AS2454 |
| Keltec | KV100-110-01C |
