Deskripsi

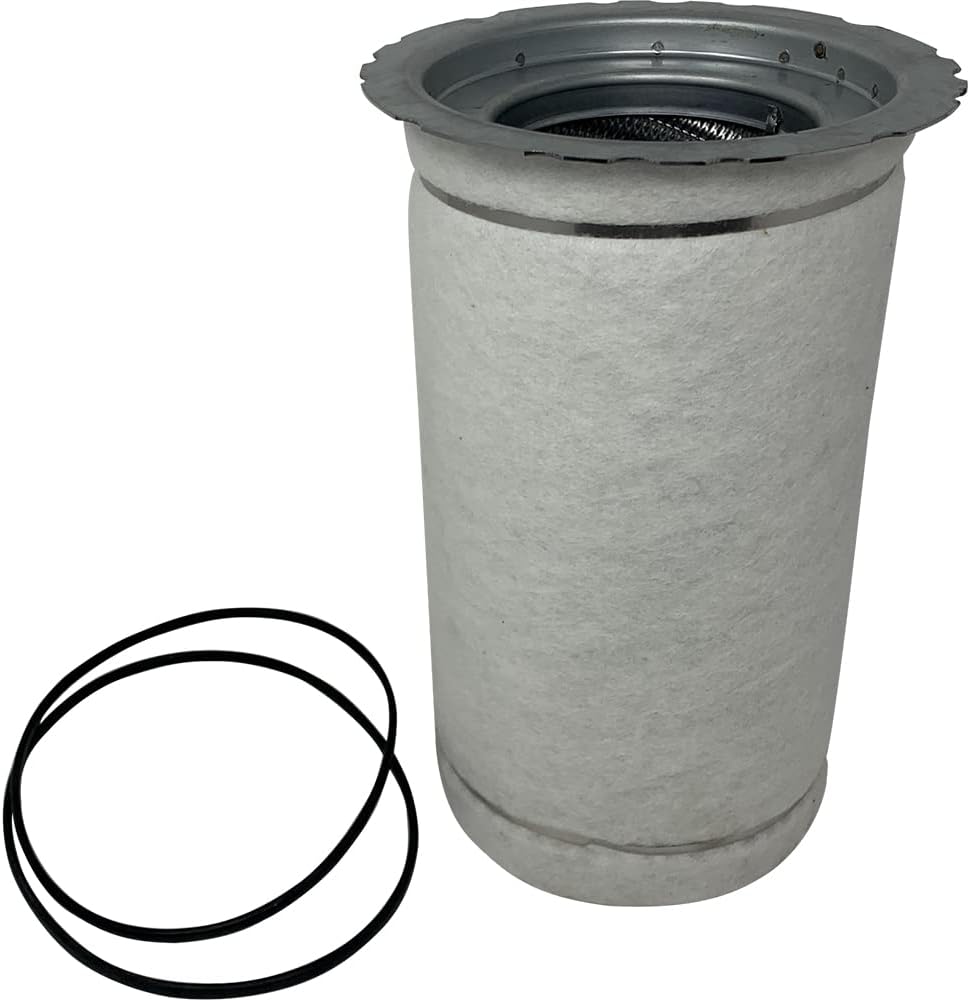

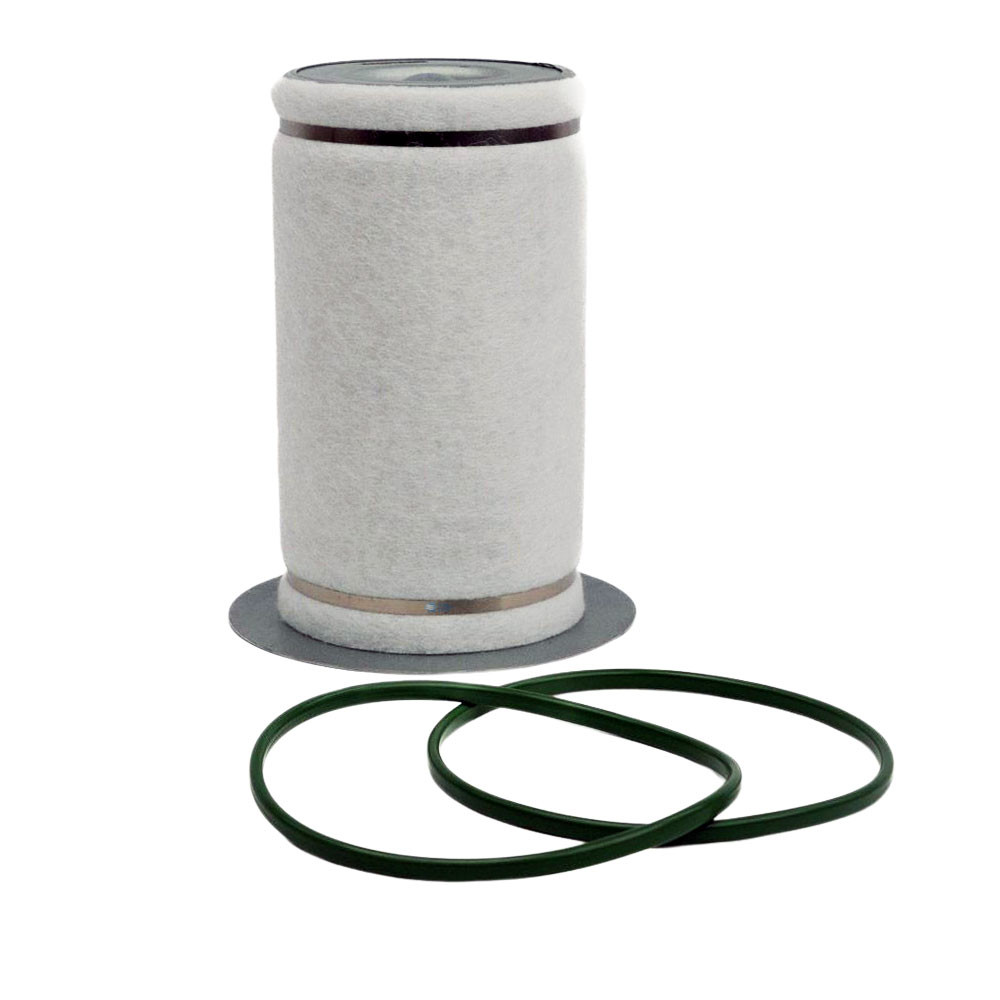

Kaeser Oil Separator 6.3792.20010
1. Spesifikasi Teknis (Technical Specifications)
| Parameter | Detail Spesifikasi |
|---|---|
| Nomor Part (PN) | 6.3792.20010 / 6.3792.2 |
| Tipe Filter | Cartridge Element (Flange Style) |
| Media Filter | Borosilicate Micro Glass Fiber |
| Tinggi Total (Height) | ± 171 mm |
| Diameter Luar (OD Body) | ± 128 mm |
| Diameter Luar (OD Flange) | ± 170 mm |
| Diameter Dalam (ID) | ± 40 mm |
| Rating Filtrasi | 3 Micron |
| Kandungan Oli Sisa | < 3 PPM |
| Tekanan Maksimal | Up to 12 – 16 Bar |
2. Kompatibilitas Unit (Unit Compatibility)
| Seri Kompresor | Model Spesifik |
|---|---|
| Kaeser SK Series | SK 18, SK 19, SK 21, SK 22, SK 25, SK 26 |
| Kaeser ASK Series | ASK 27, ASK 32, ASK 35, ASK 40 |
| Kaeser Air Center | Unit berbasis SK 22 dan SK 25 |
| Kapasitas Motor | Umumnya untuk unit 11 kW – 22 kW (15 HP – 30 HP) |
3. Referensi Silang (Cross Reference)
| Manufaktur / Brand | Nomor Part Alternatif |
|---|---|
| Kaeser (Original) | 6.3792.20010 / 6.3792.2 / 6.3792.0 |
| HIFI Filter | OS 5004 / OE 3018 |
| Mann-Filter | 49 301 55 131 |
| Sotras | DB 2102 |
| Donaldson | P782809 (Equivalent) |
| Fleetguard | AS2454 (Equivalent) |
| Keltec | KV128-171-01C |
