Deskripsi

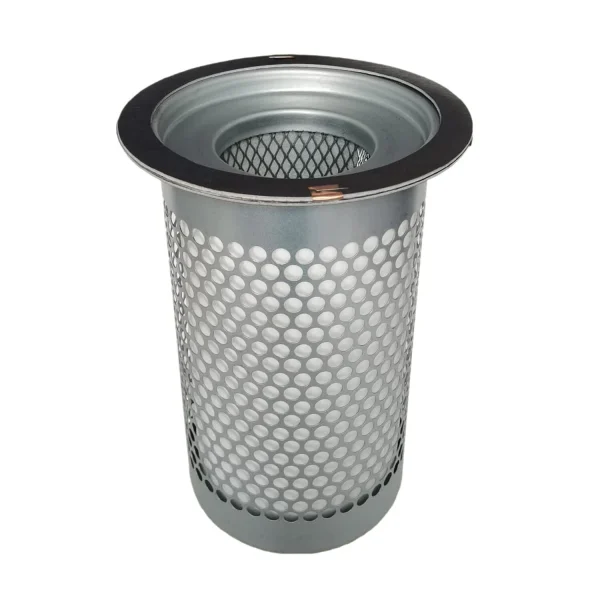

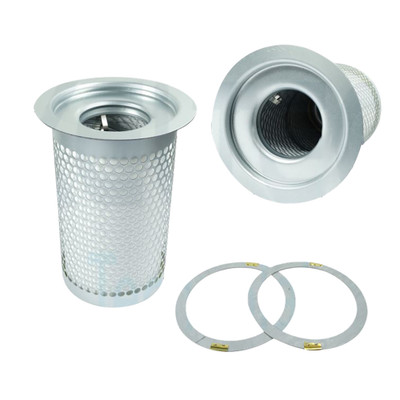

Kaeser Oil Separator 6.3671.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.3671.0 |
| Tipe Filter | Internal Air/Oil Separator Element (Cartridge) |
| Diameter Luar Flensa (OD Flange) | 350 mm |
| Diameter Luar Tabung (OD Body) | 270 mm |
| Tinggi Total (Height) | 705 mm |
| Material Media | Multilayer Premium Borosilicate Glass Fiber |
| Arah Aliran (Flow Direction) | Luar ke Dalam (Outside to In) |
| Efisiensi Pemisahan | Sisa oli < 1 – 3 mg/m³ (3 ppm) |
| Tekanan Kerja Maksimum | 20 Bar |
| Fitur Grounding | Gasket anti-statis dengan staples logam terintegrasi |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser ES Series | ES 250, ES 280, ES 290 |
| Kaeser FS Series | FS 360, FS 400, FS 440, FS 480 |
| Kaeser GS Series | GS 500, GS 520, GS 560 |
| Kaeser HSD Series | HSD 500, HSD 600, HSD 650, HSD 700 |
| Kapasitas Motor | 160 kW – 450 kW (215 HP – 600 HP) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.3671.0 |
| Mann-Filter | 49 901 58 131 |
| Hifi Filter | OS 5023 |
| Sotras | DB 2128 |
| Keltec | KV350-005 |
