Deskripsi

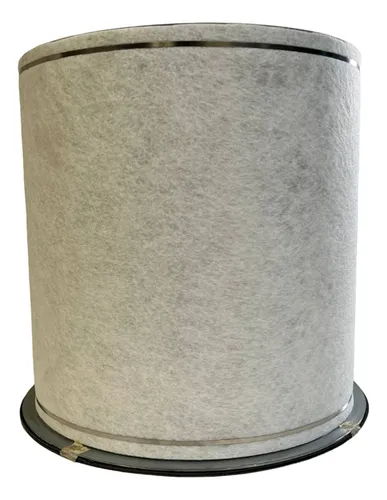

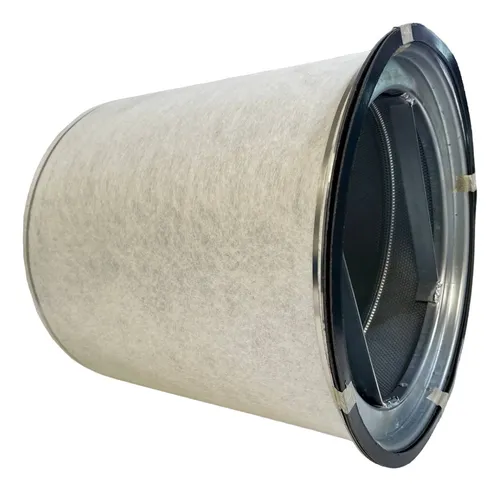

Kaeser Oil Separator 6.3542.0
Spesifikasi Teknis Produk
| Parameter Teknis | Detail Spesifikasi |
|---|---|
| Nomor Part (OEM) | 6.3542.0 / 6.3542.0/A1 |
| Tipe Filter | Deep-Fit Flange Separator (Internal) |
| Tinggi (Height) | 400 mm (~15,75 inci) |
| Diameter Luar Tabung (OD) | 270 mm (~10,63 inci) |
| Diameter Luar Flensa (FD) | 328 mm (~12,91 inci) |
| Diameter Dalam (ID) | 210 mm (~8,27 inci) |
| Media Filtrasi | Multilayer Borosilicate Glass Fiber |
| Sisa Kandungan Oli | < 3 mg/m³ (approx. 2-3 ppm) |
| Material Rangka | Baja Galvanis Anti-Korosi |
Kesesuaian Unit (Compatibility)
| Manufaktur | Seri Utama | Model Spesifik |
|---|---|---|
| Kaeser | CSD Series | CSD 102, CSD 105, CSD 122, CSD 125 |
| Kaeser | CSDX Series | CSDX 137, CSDX 140, CSDX 162, CSDX 165 |
| Kaeser | SFC Series | SFC 110, SFC 132 (Generasi Tertentu) |
| Kaeser | T-Series | Model CSD/CSDX dengan Dryer (T-Model) |
Daftar Persamaan Part (Cross Reference)
| Merk (Brand) | Nomor Part Alternatif |
|---|---|
| Mann & Hummel | OS 2101 / OS 2101 x |
| Hifi Filter | OV 6077 |
| Sotras | DB 2146 |
| Donaldson | P550949 |
| Kaeser (Alt) | 6.3542.0 |
| Noitech | NO 021 008 |
| Airfil | AFO-3541 / AFO-3542 |
