Deskripsi

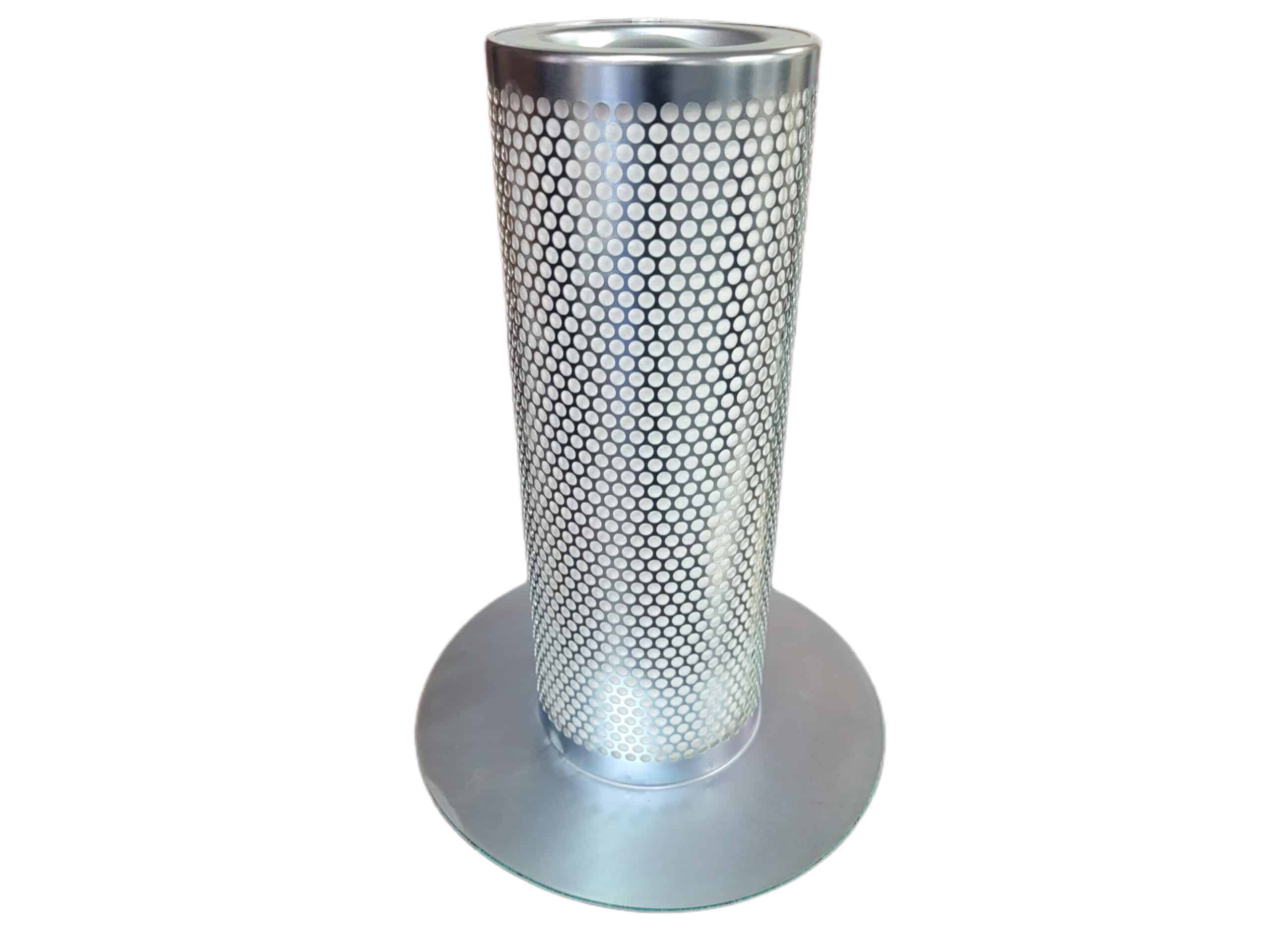

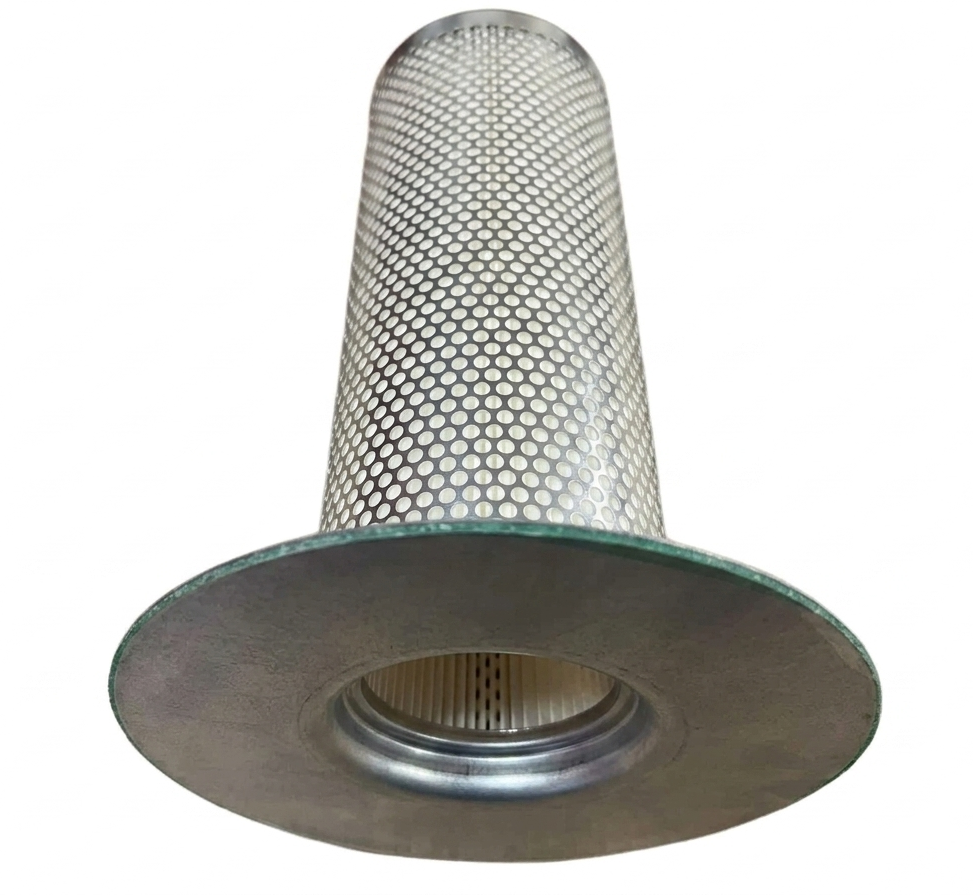

Kaeser Oil Separator 6.3536.0
Spesifikasi Teknis Produk
| Parameter Teknis | Detail Spesifikasi |
|---|---|
| Nomor Part (OEM) | 6.3536.0 / 6.3536.0/A1 |
| Tipe Filter | Deep-Fit Flange Separator (Internal) |
| Tinggi (Height) | 600 mm |
| Diameter Luar Tabung (OD) | 395 mm |
| Diameter Luar Flensa (FD) | 465 mm |
| Diameter Dalam (ID) | 315 mm |
| Media Filtrasi | Multilayer Borosilicate Glass Fiber |
| Sisa Kandungan Oli | 1 – 3 mg/m³ (approx. 2-3 ppm) |
| Tekanan Diferensial Maks. | 0.2 bar (Kondisi Baru) |
Kesesuaian Unit (Compatibility)
| Manufaktur | Seri Utama | Model Spesifik |
|---|---|---|
| Kaeser | ESD Series | ESD 300, ESD 350, ESD 441 |
| Kaeser | FSD Series | FSD 471, FSD 571 |
| Kaeser | FSD Series | FSD 621 |
| Kaeser | SFC Series | SFC 250, SFC 315, SFC 355 (Varian ESD/FSD) |
| Kaeser | T-Series | Varian ESD/FSD dengan Dryer Terintegrasi |
Daftar Persamaan Part (Cross Reference)
| Merk (Brand) | Nomor Part Alternatif |
|---|---|
| Mann & Hummel | OS 3901 |
| Hifi Filter | OV 6111 |
| Sotras | DB 2112 |
| Donaldson | P550952 |
| Kaeser (Alt) | 6.3536.1 / 6.3636.0 |
| Noitech | NO 021 005 |
| Keltec | KA-150-016 |
