Deskripsi

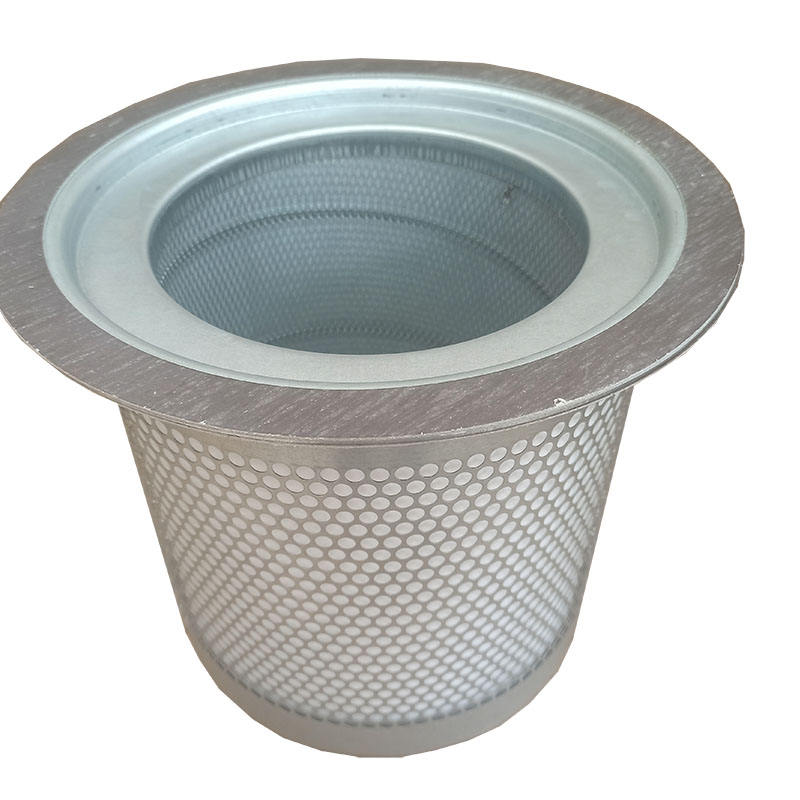

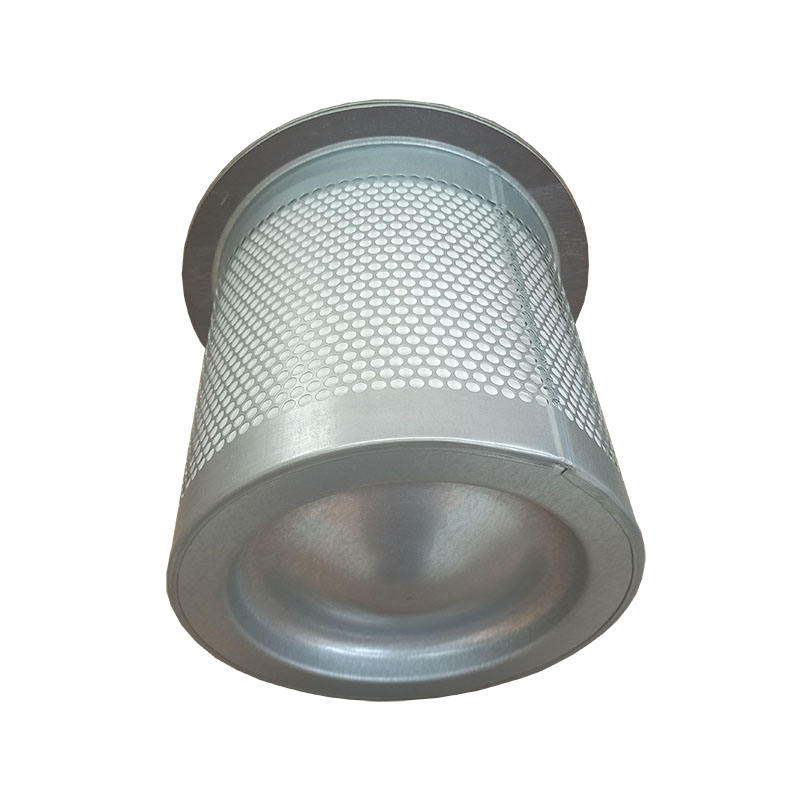

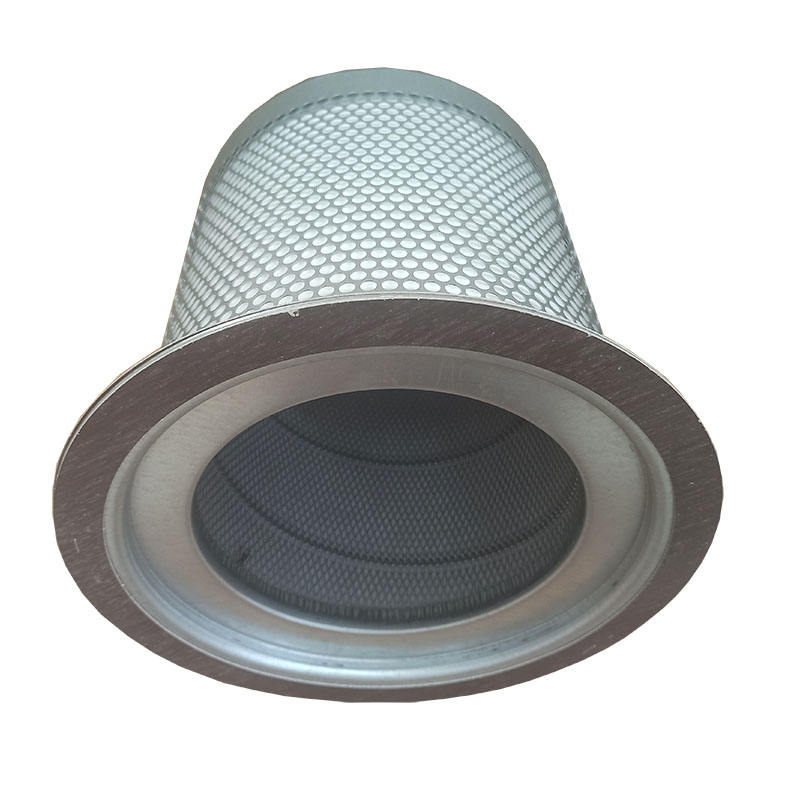

Kaeser Oil Separator 6.3534.0
Spesifikasi Teknis Produk
| Parameter Teknis | Detail Spesifikasi |
|---|---|
| Nomor Part (OEM) | 6.3534.0 / 6.3534.0/A1 |
| Tipe Filter | Flange Style Separator (Internal) |
| Tinggi (Height) | 600 mm (~23,62 inci) |
| Diameter Luar Tabung (OD) | 350 mm (~13,78 inci) |
| Diameter Luar Flensa (FD) | 395 mm (~15,55 inci) |
| Diameter Dalam (ID) | 242 mm (~9,52 inci) |
| Material Media | Micro-glass Fiber (Multilayer) |
| Arah Aliran | Out-to-In (Dari Luar ke Dalam) |
| Sisa Kandungan Oli | < 2-3 ppm (parts per million) |
Kesesuaian Unit (Compatibility)
| Manufaktur | Seri Utama | Model Spesifik |
|---|---|---|
| Kaeser | DSD Series | DSD 140, DSD 170, DSD 200 |
| Kaeser | DSDX Series | DSDX 200, DSDX 241, DSDX 302 |
| Kaeser | ESD Series | ESD 200, ESD 250, ESD 300 |
| Kaeser | SFC Series | SFC 132, SFC 160 (Generasi Tertentu) |
| Kaeser | T-Series | Varian unit DSD/ESD dengan Dryer |
Daftar Persamaan Part (Cross Reference)
| Merk (Brand) | Nomor Part Alternatif |
|---|---|
| Mann & Hummel | OS 3501 (atau seri khusus industri) |
| Hifi Filter | OV 6109 |
| Sotras | DB 2110 |
| Donaldson | P550951 (Referensi dimensi) |
| Kaeser (Alt Code) | 6.3534.1 / 6.3634.0 |
| Keltec Technolab | KA-150-015 |
| Airfil | AFO-3534 |
