Deskripsi

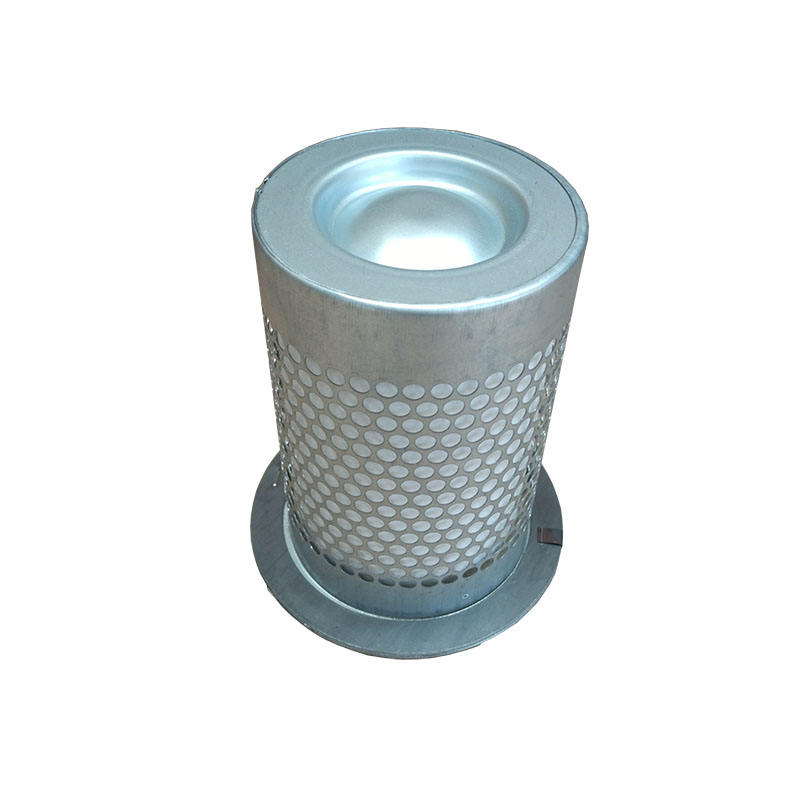

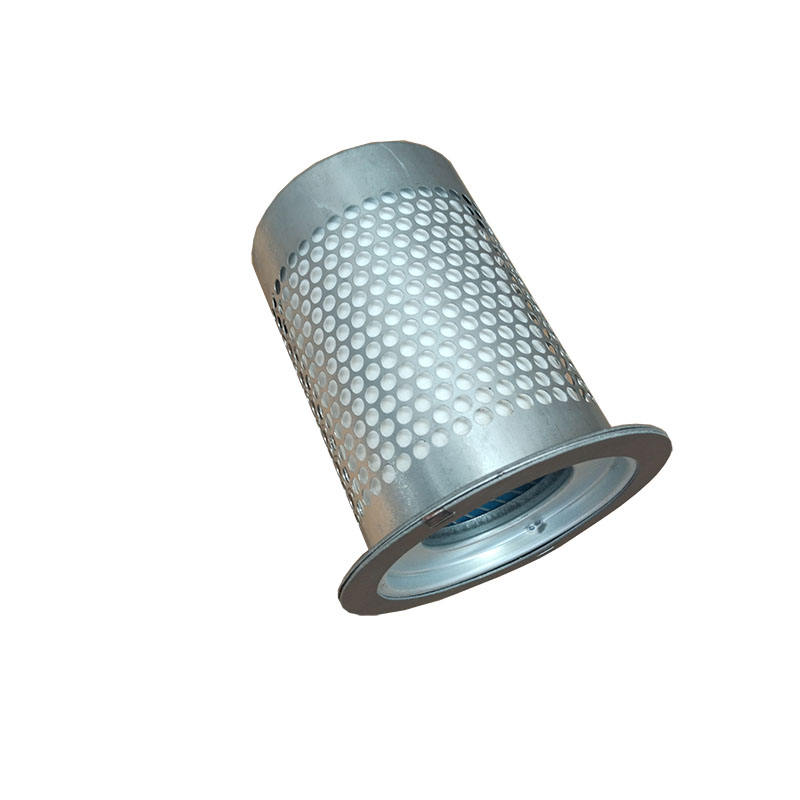

Kaeser Oil Separator 6.2031.1
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.2031.1 |
| Tipe Filter | Spin-On Air/Oil Separator |
| Diameter Luar (OD) | 108 mm |
| Tinggi Total (Height) | 212 mm |
| Ukuran Ulir (Thread) | M22 x 1.5 |
| Material Media | Advanced Multilayer Borosilicate Fiber |
| Efisiensi Pemisahan | Sisa oli < 1 – 3 mg/m³ (3 ppm) |
| Tekanan Kerja Maksimum | 20 Bar |
| Suhu Operasi Maksimum | 120°C |
| Fitur Konstruksi | Kaleng baja galvanis dengan reinforced bypass prevention |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SX Series | SX 3, SX 4, SX 6, SX 7, SX 8 |
| Kaeser Aircenter | Seri SX (Unit dengan pengering udara terintegrasi) |
| Kapasitas Motor | 2.2 kW – 5.5 kW (3 HP – 7.5 HP) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.2031.1 |
| Mann-Filter | LB 11 102/3 |
| Hifi Filter | OV 6031 |
| Sotras | DF 5013 |
| Donaldson | P550262 |
| Baldwin | OAS99021 |
