Deskripsi

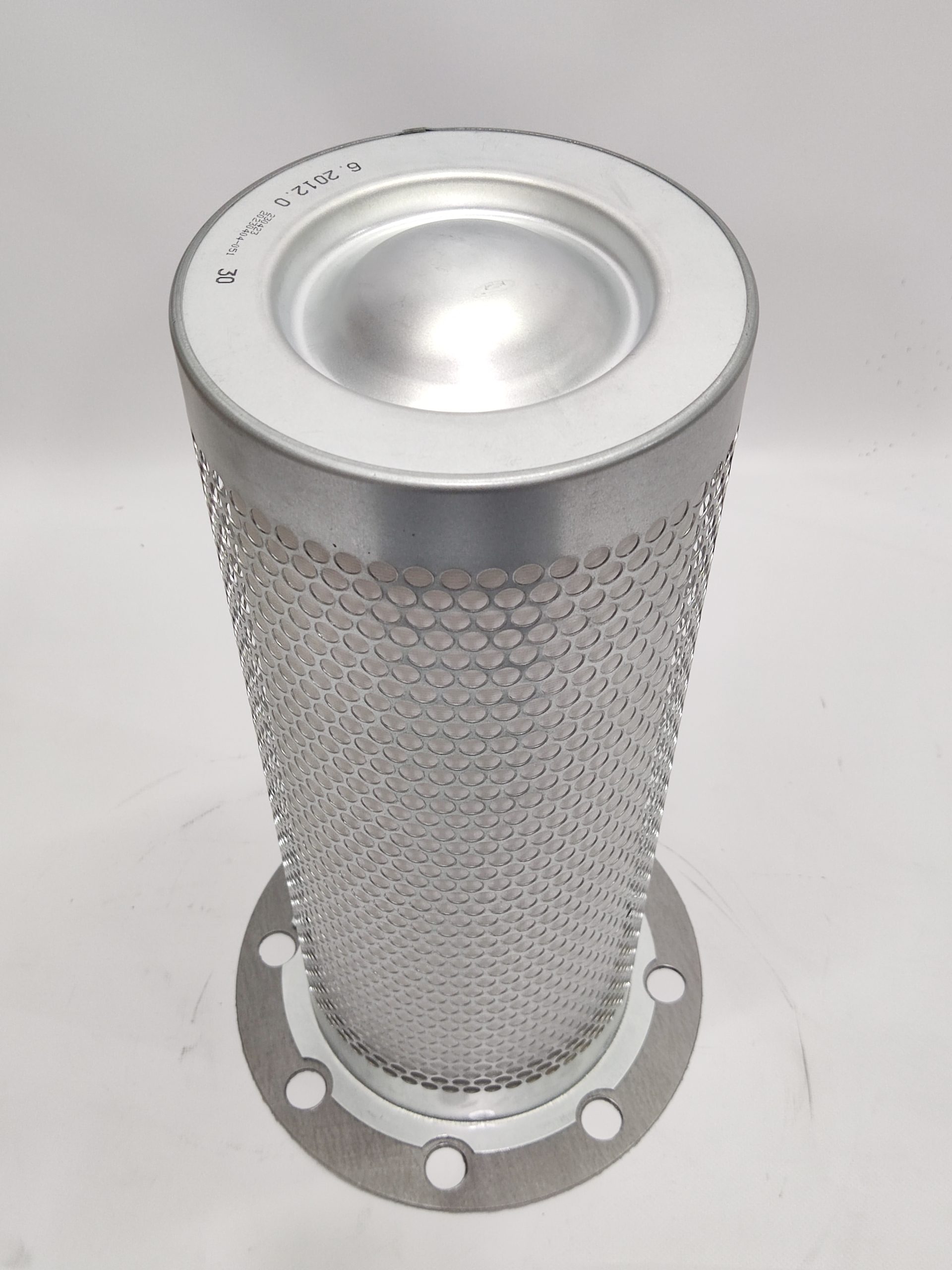

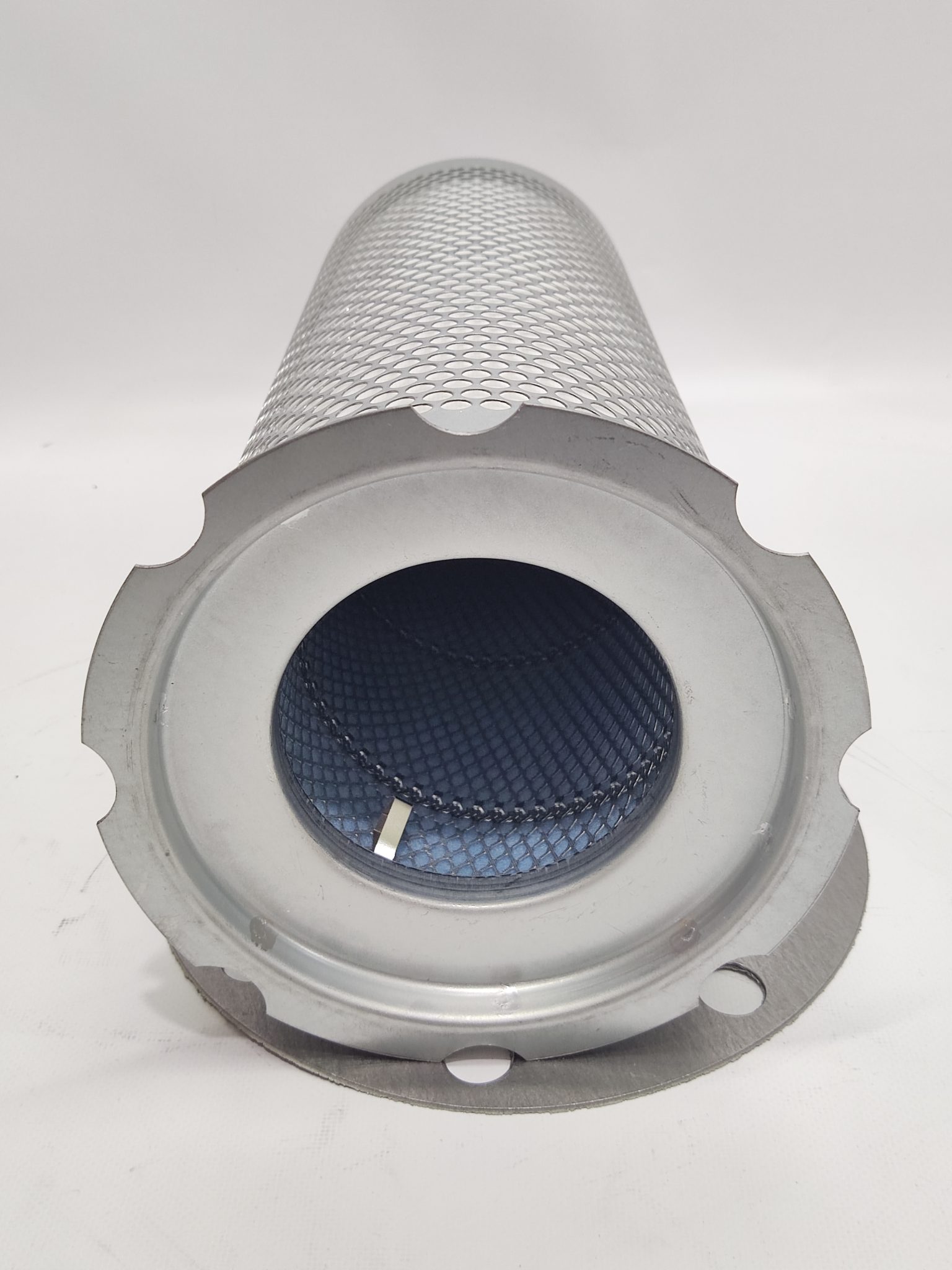

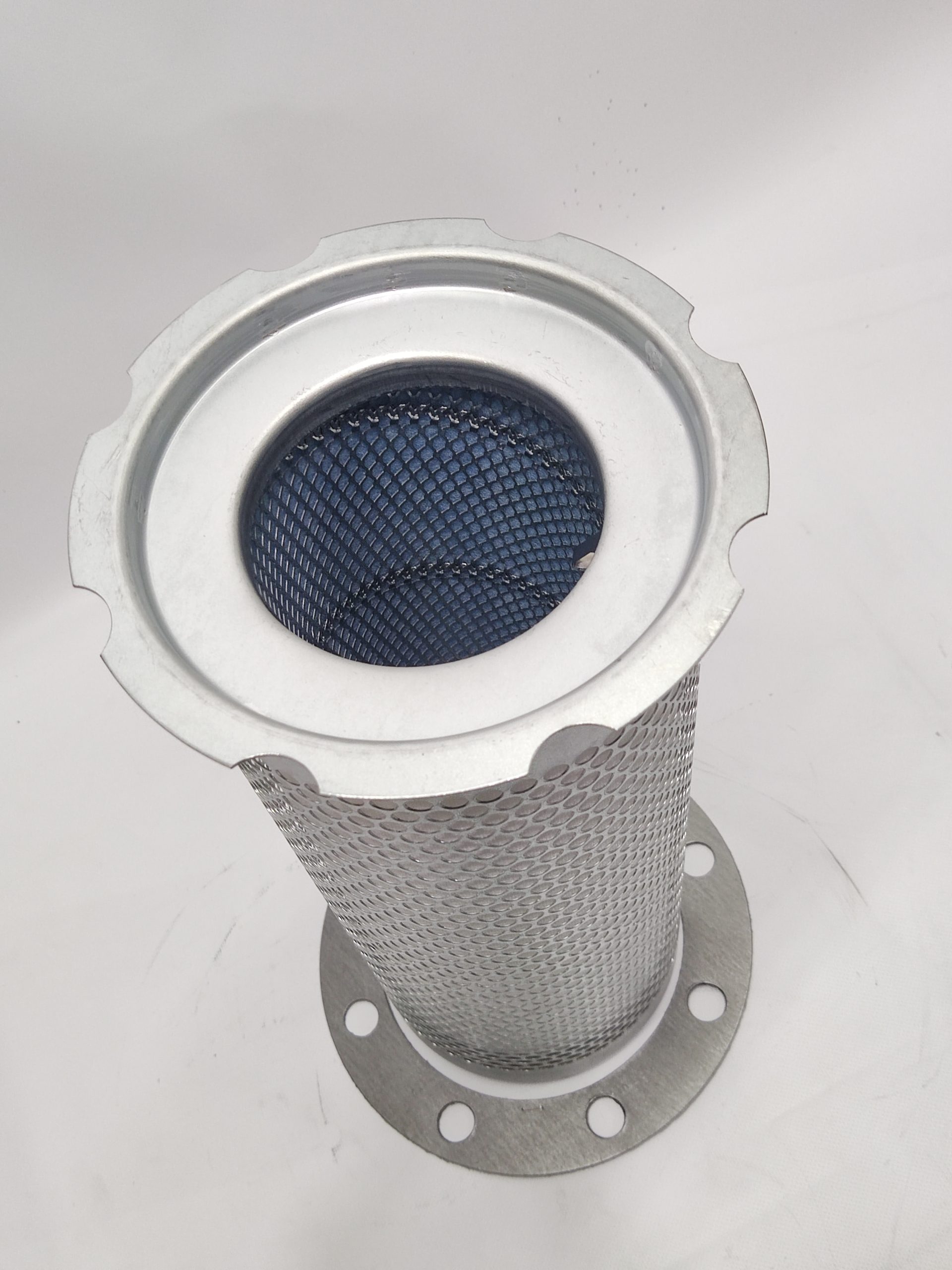

Kaeser Oil Separator 6.2012.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.2012.0 |
| Tipe Filter | Spin-On Air/Oil Separator |
| Diameter Luar (OD) | 136 mm |
| Tinggi Total (Height) | 212 mm |
| Ukuran Ulir (Thread) | M39 x 1.5 |
| Material Media | Premium Micro-Glass Fiber |
| Efisiensi Pemisahan | Sisa oli < 1 – 3 mg/m³ (3 ppm) |
| Tekanan Kerja Maksimum | 20 Bar |
| Suhu Operasi Maksimum | 120°C |
| Konstruksi Canister | Baja tahan tekanan tinggi dengan lapisan anti-korosi |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SK Series | SK 22, SK 25, SK 26 |
| Kaeser ASK Series | ASK 27, ASK 30, ASK 32, ASK 35, ASK 40 |
| Kaeser Aircenter | Seri SK dan ASK (Integrated Systems) |
| Kapasitas Motor | 11 kW – 22 kW (15 HP – 30 HP) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.2012.0 |
| Mann-Filter | LB 13 145 |
| Hifi Filter | OV 6016 |
| Sotras | DF 5009 |
| Donaldson | P550425 |
| Baldwin | OAS99018 |
