Deskripsi

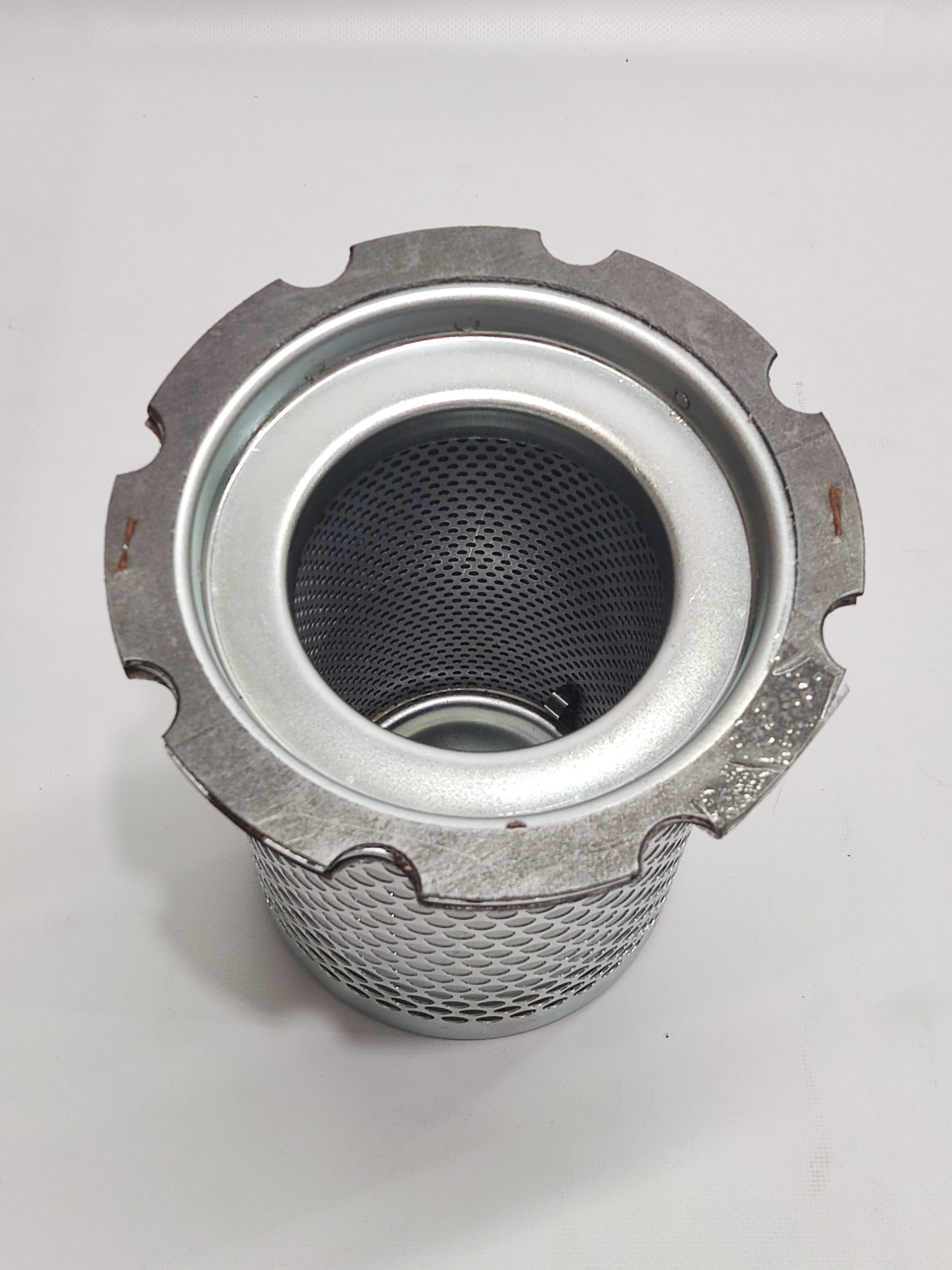

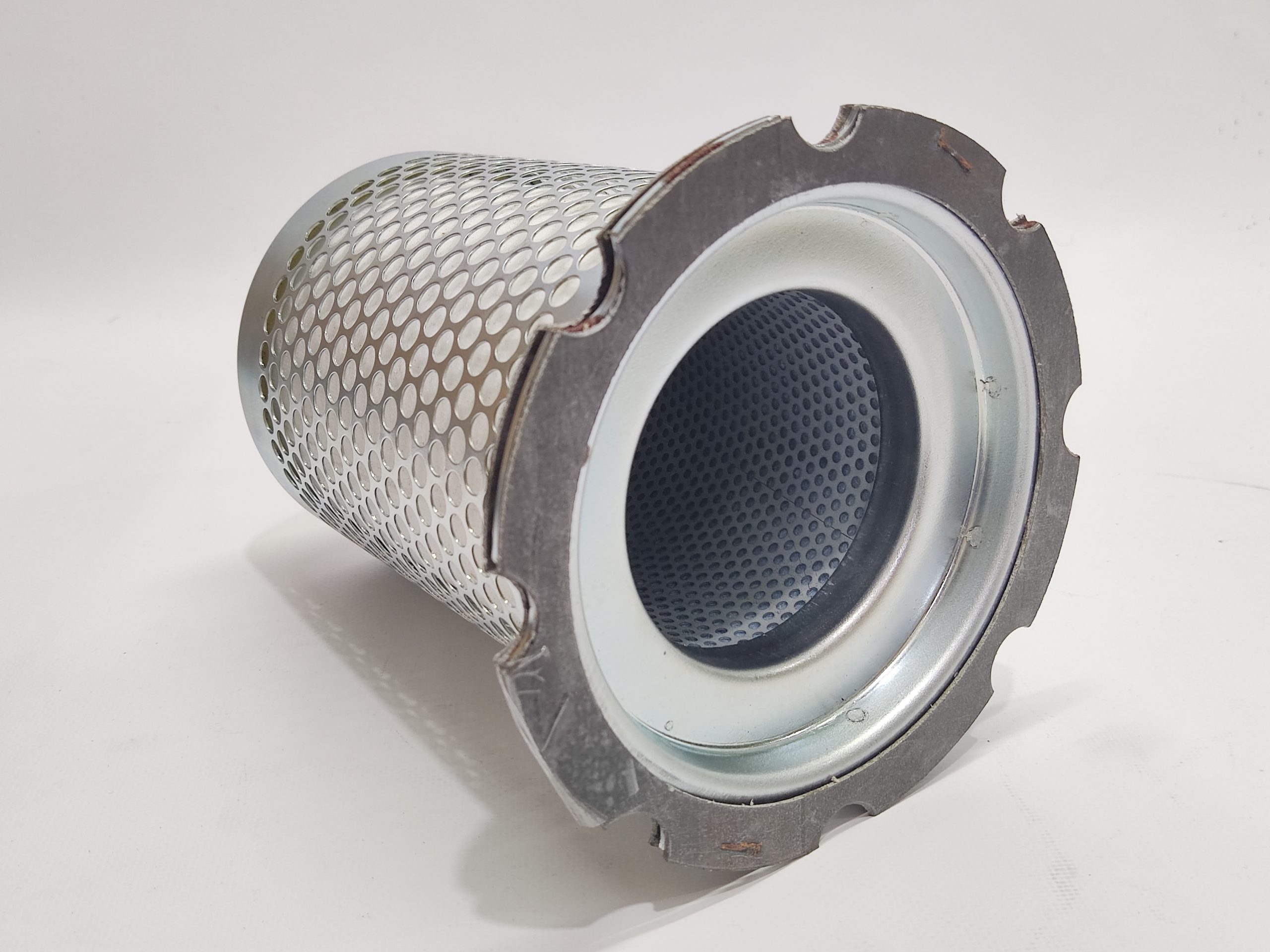

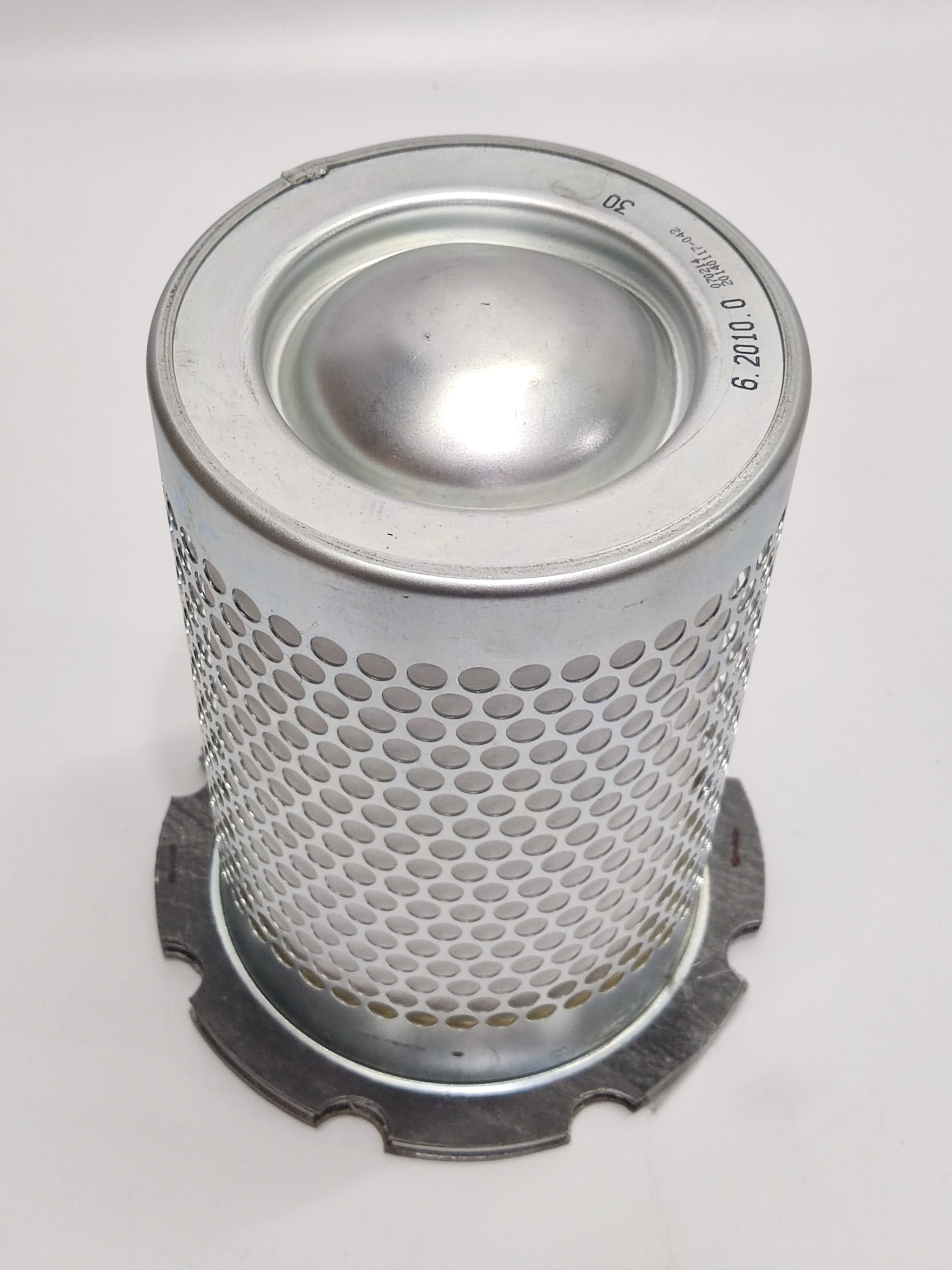

Kaeser Oil Separator 6.2010.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.2010.0 |
| Tipe Filter | Spin-On Air/Oil Separator |
| Diameter Luar (OD) | 136 mm |
| Tinggi Total (Height) | 302 mm |
| Ukuran Ulir (Thread) | M39 x 1.5 |
| Material Media | Multilayer Synthetic / Borosilicate Fiber |
| Efisiensi Pemisahan | Sisa oli < 1 – 3 mg/m³ (3 ppm) |
| Tekanan Kerja Maksimum | 20 Bar |
| Gasket Material | High-Temp Nitrile (Buna-N) |
| Fungsi Utama | Pemisahan kabut oli untuk udara tekan kualitas industri |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SM Series | SM 9, SM 10, SM 11, SM 12, SM 15 |
| Kaeser SK Series | SK 18, SK 19, SK 21, SK 22, SK 25, SK 26 |
| Kaeser Aircenter | Seri SM dan SK (Sistem terintegrasi Dryer/Tank) |
| Kapasitas Motor | 5.5 kW – 15 kW (7.5 HP – 20 HP) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.2010.0 |
| Mann-Filter | LB 13 145/3 |
| Hifi Filter | OV 6015 |
| Sotras | DF 5006 |
| Donaldson | P550424 |
| Baldwin | OAS99017 |
