Deskripsi

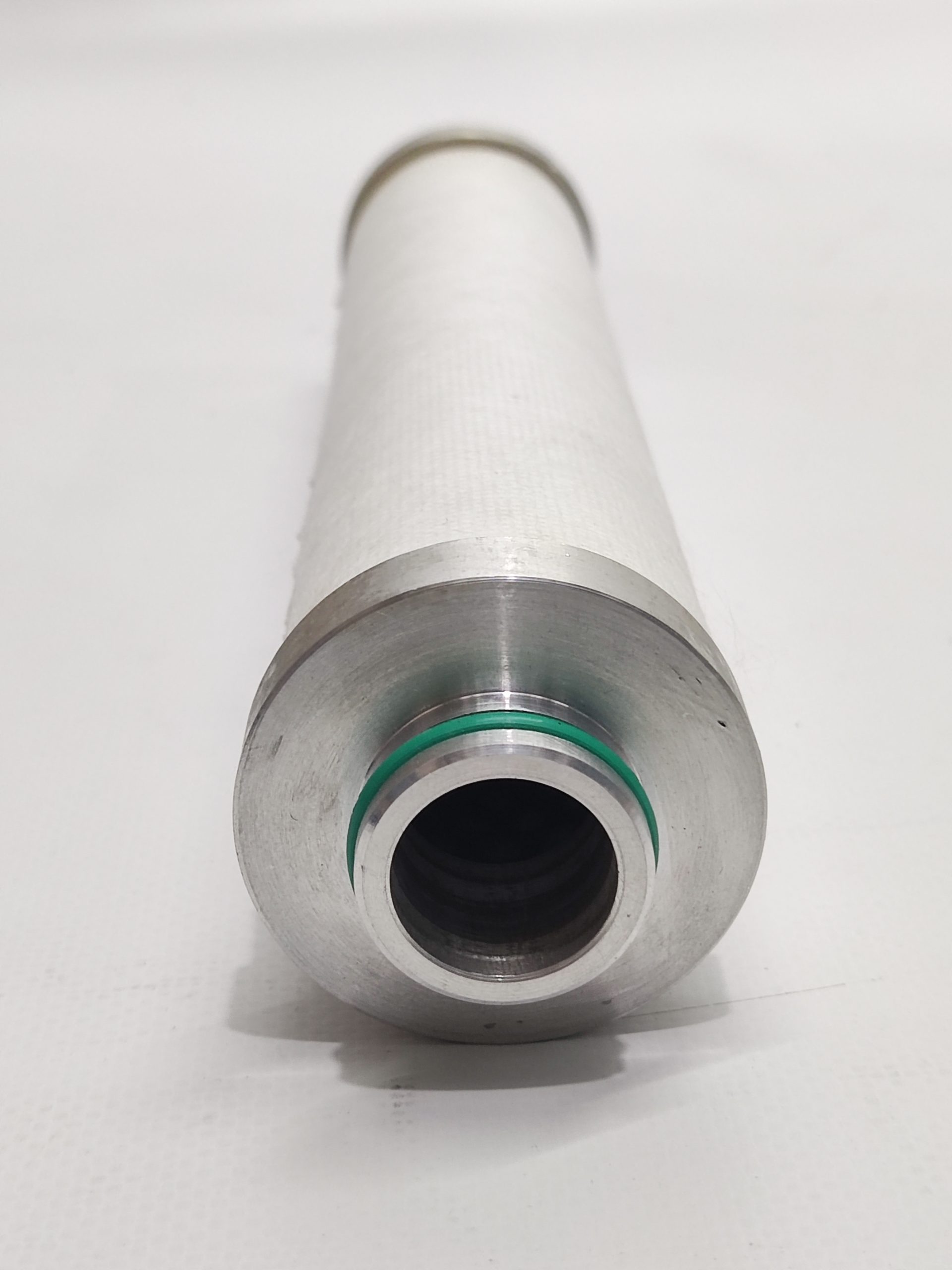

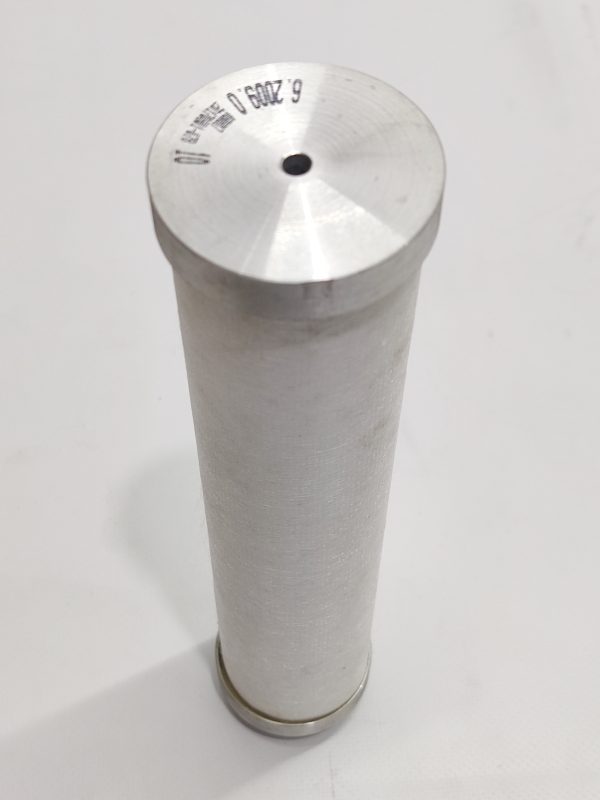

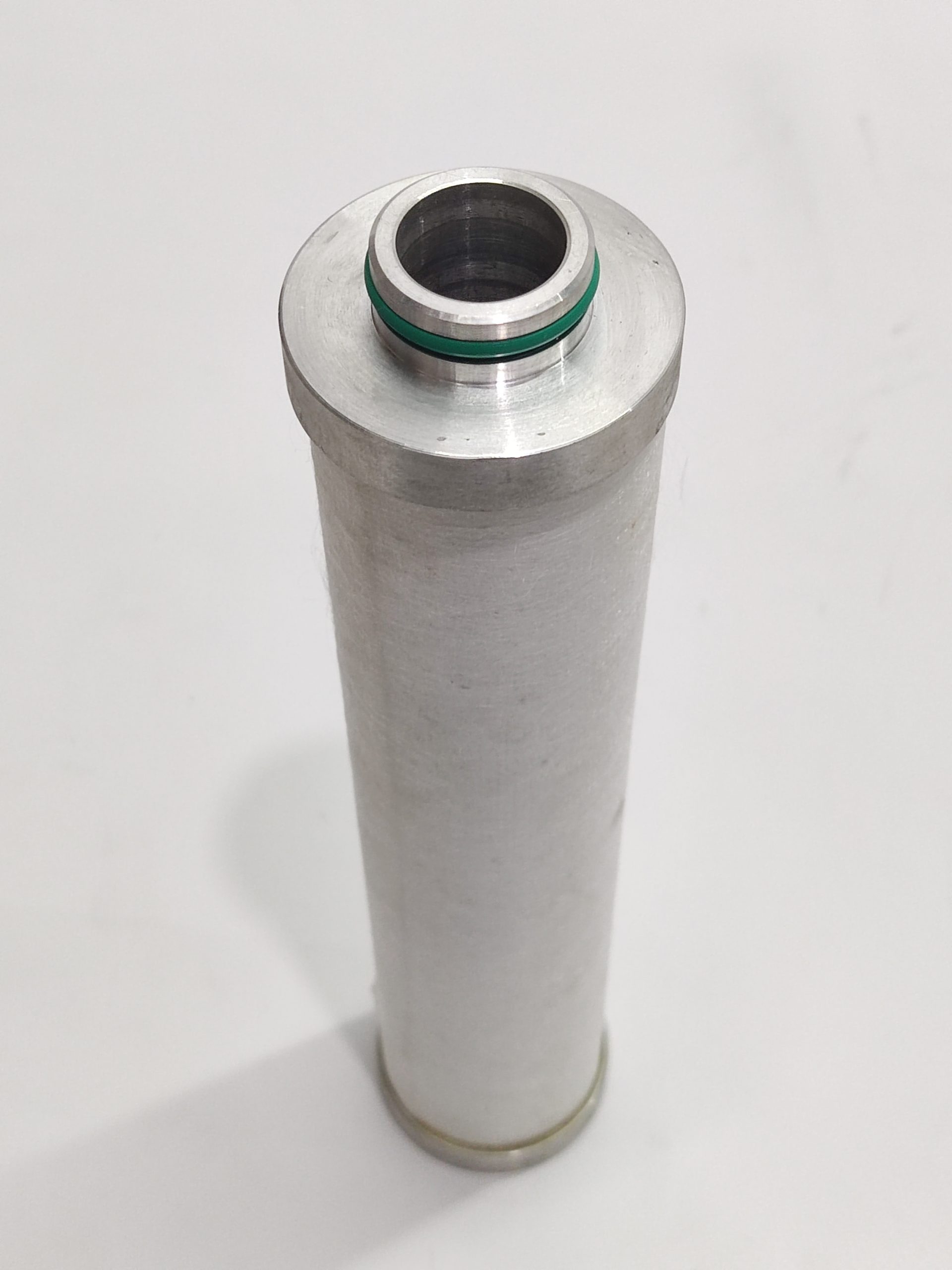

Kaeser Oil Separator 6.2009.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.2009.0 |
| Tipe Filter | Spin-On Air/Oil Separator |
| Diameter Luar (OD) | 93 mm |
| Tinggi Total (Height) | 142 mm |
| Ukuran Ulir (Thread) | M24 x 1.5 |
| Material Media | Premium Borosilicate Micro-Glass |
| Efisiensi Pemisahan | Sisa oli < 3 mg/m³ (3 ppm) |
| Tekanan Kerja Maksimum | 20 Bar |
| Suhu Operasi Maksimum | 120°C |
| Fitur Tambahan | Dilengkapi seal yang tahan terhadap oli sintetis |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SX Series | SX 3, SX 4, SX 6 |
| Kaeser SXC Series | SXC 3, SXC 4, SXC 6 |
| Kaeser Aircenter | Seri SX 3, SX 4, SX 6 (Unit All-in-One) |
| Kapasitas Motor | 2.2 kW – 4 kW (3 HP – 5.5 HP) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.2009.0 |
| Mann-Filter | LB 962 |
| Hifi Filter | OV 6012 |
| Sotras | DF 5004 |
| Donaldson | P550813 |
| Baldwin | OAS99014 |
