Deskripsi

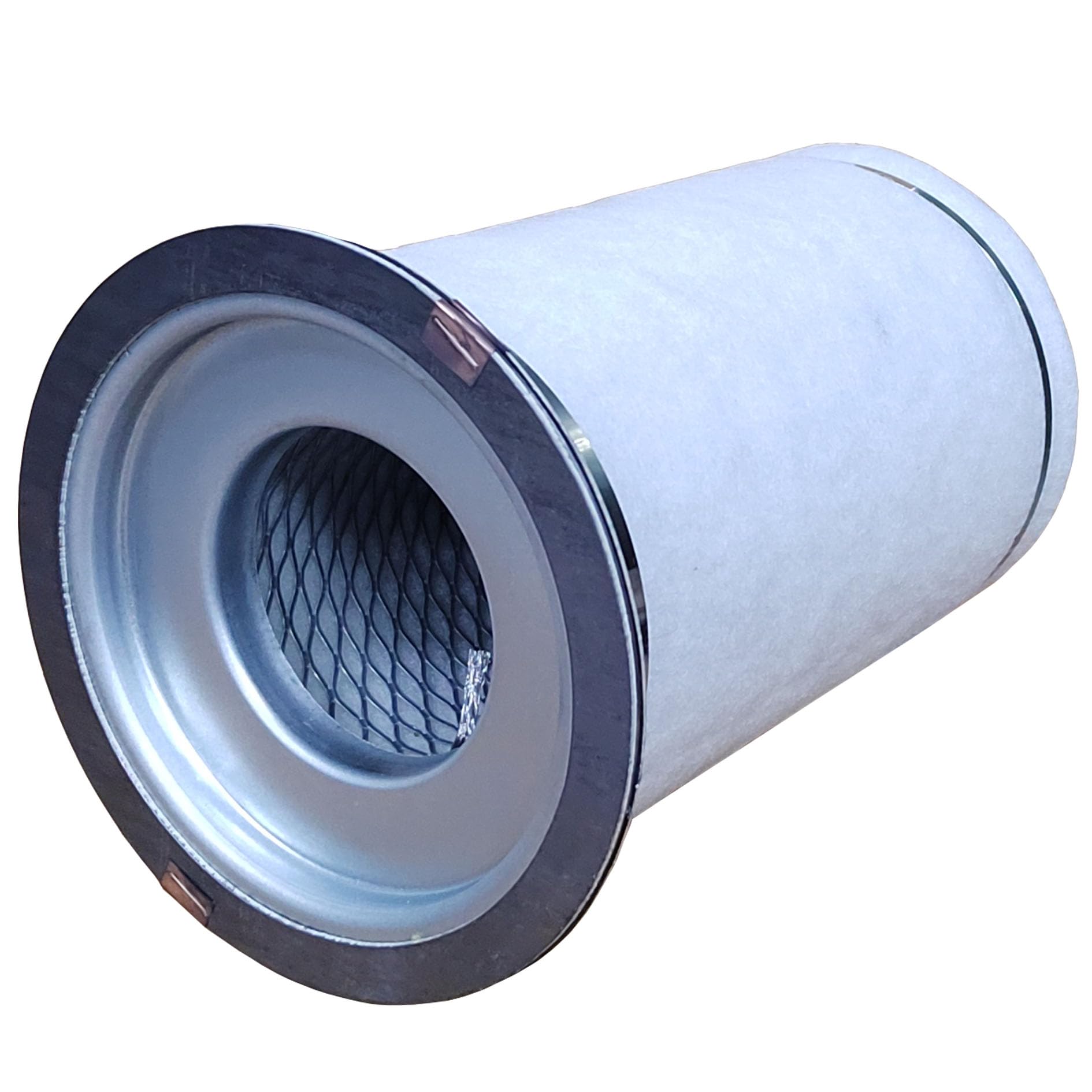

Kaeser Oil Separator 6.1947.0
1. Spesifikasi Teknis
| Kategori | Spesifikasi Detail |
|---|---|
| Part Number | 6.1947.0 / 619470 |
| Brand Unit | Kaeser Kompressoren |
| Tipe Filter | Flange / Basket / Internal (Bibir) |
| Aplikasi Mesin | Kaeser Seri KV (Contoh: KV 200) |
| Material Media | High-Quality Glass Fiber (Serat Kaca) |
| Tinggi (H) | ± 200 mm |
| Diameter Luar Bodi (D1) | ± 170 mm |
| Diameter Luar Flensa (D2) | ± 200 mm |
| Diameter Dalam (D3) | ± 110 mm |
| Laju Aliran (Flow Rate) | Dioptimalkan untuk kapasitas mesin seri KV |
| Sisa Oli (Carryover) | < 3 mg/m³ (3 ppm) |
| Penurunan Tekanan | ± 0.2 bar (awal) |
| Suhu Maksimal | 120°C (248°F) |
| Fitur Keamanan | Grounding Conductive (Anti Statis) |
2. Tabel Kompatibilitas Unit
| Seri Mesin | Model Spesifik |
|---|---|
| Kaeser KV Series | KV 125, KV 165, KV 200, KV 210, KV 250 |
| Kaeser SK Series | Model SK tertentu (Tergantung tahun produksi) |
| Kaeser M Series | M 121, M 122, M 123 (Unit Portabel / Mobil) |
| Kaeser SX Series | SX 3, SX 4, SX 6 (Variasi tertentu) |
3. Tabel Cross Reference
| Brand / Manufaktur | Part Number (Cross Reference) |
|---|---|
| Kaeser (Original) | 6.1947.0 / 619470 |
| Mann Filter | LB 13 145/3 |
| Sullair | 250034-114 |
| Donaldson | P550132 |
| Fleetguard | AS2342 |
| Baldwin | OAS99021 |
| Sotras | DB 2132 |
| Almig | 572.08371 |
| CompAir | 98262/221 |
| Fluitek | FLK16-03267 |
| Fispa | FB5147 |
