Deskripsi

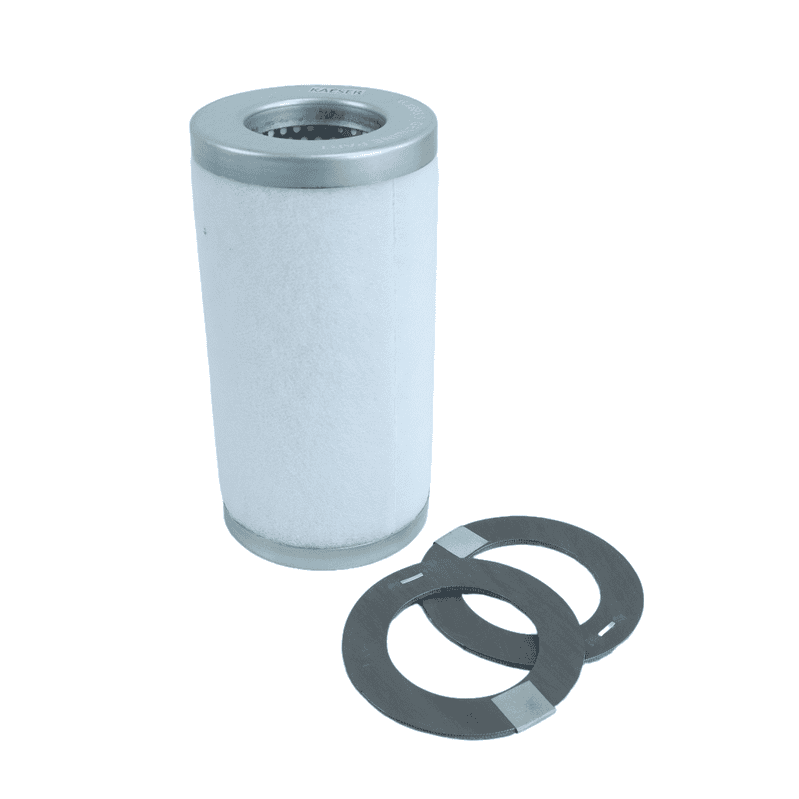

Kaeser Oil Separator 6.1893.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.1893.0 |
| Tipe Filter | Air/Oil Separator Element (Elemen Dalam) |
| Diameter Luar (OD) | 135 mm |
| Diameter Dalam (ID) | 95 mm |
| Tinggi Total (Height) | 225 mm |
| Material Media | Borosilicate Glass Fiber (Multi-Layer) |
| Flow Direction | Out to In (Luar ke Dalam) |
| Kandungan Sisa Oli | < 3 mg/m³ (3 ppm) |
| Differential Pressure | ± 0.2 Bar (Kondisi Baru) |
| Temperatur Kerja Maks | 120°C |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SX Series | SX 3, SX 4, SX 6, SX 7, SX 8 |
| Kaeser ASK Series | ASK 27, ASK 32, ASK 35 (Varian tertentu) |
| Kaeser Aircenter | Seri SX dan ASK yang terintegrasi dengan dryer |
| Aplikasi Sistem | Kompresor Sekrup Injeksi Oli (Oil-Injected Screw) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.1893.0 |
| Mann-Filter | 49 002 52 141 / LB 13 145/21 |
| Hifi Filter | OV 6019 |
| Sotras | DB 2132 |
| Donaldson | P550816 |
| Baldwin | OAS99023 |
| Fleetguard | AS2403 |
