Deskripsi

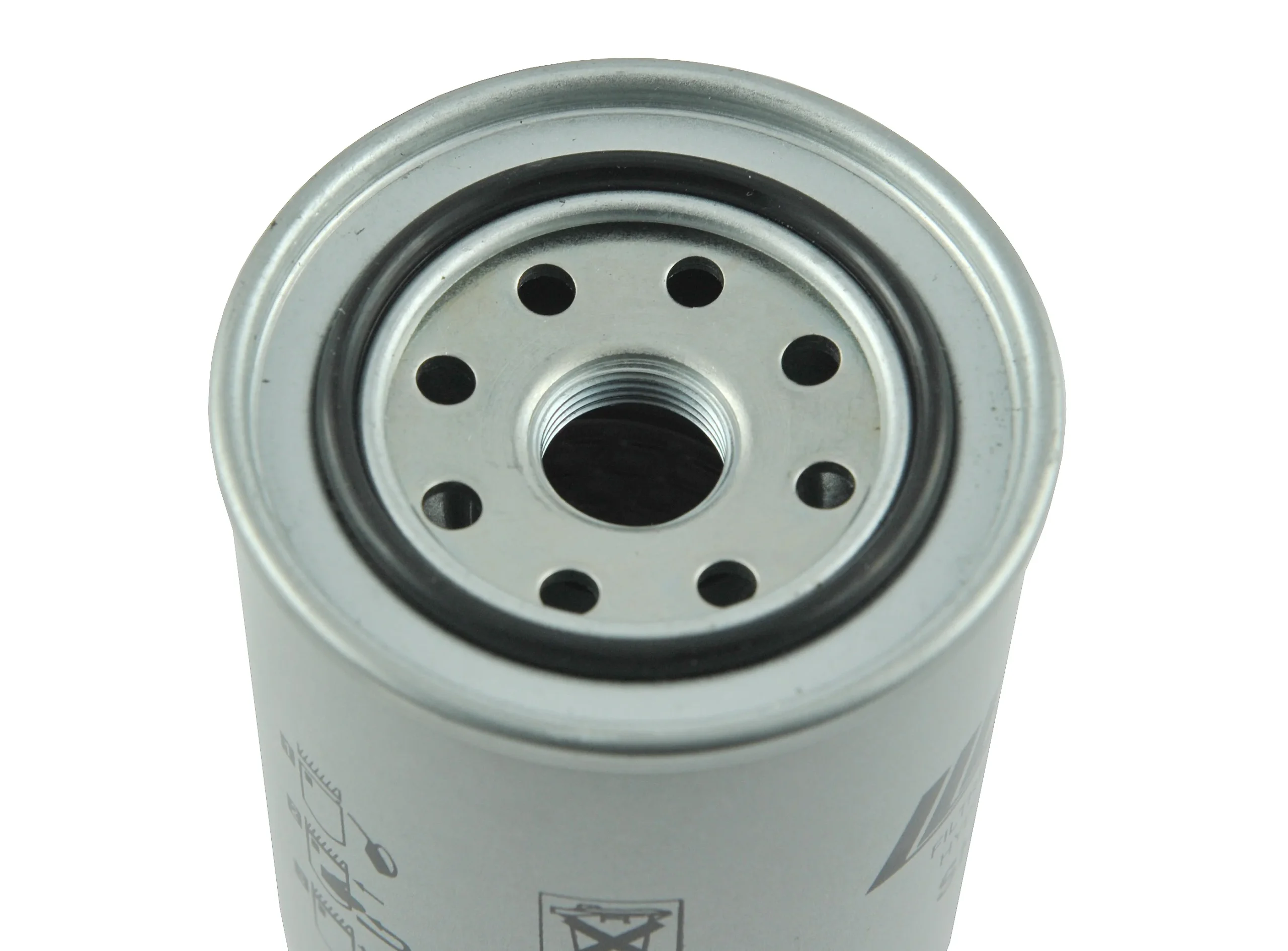

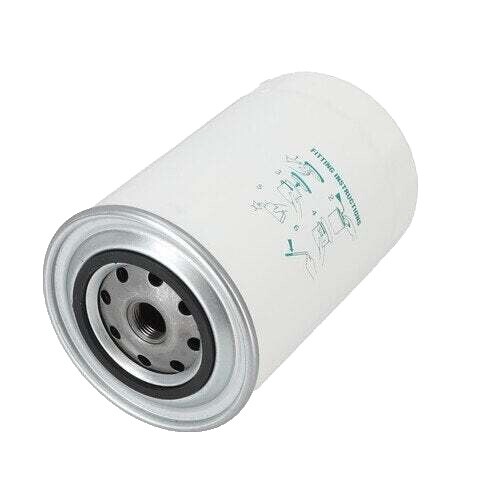

Kaeser Oil Filter 8.9315.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 8.9315.0 |
| Diameter Luar (OD) | 76 mm |
| Tinggi Total (Height) | 79 mm |
| Ukuran Ulir (Thread) | M20 x 1.5 |
| Tipe Filter | Spin-On |
| Tekanan Kerja Nominal | 10 – 14 Bar |
| Anti-Drainback Valve | Terintegrasi (Mencegah oli mengalir balik saat mesin mati) |
| Bypass Valve | Terintegrasi (Mencegah hambatan aliran oli) |
| Media Filtrasi | Premium Cellulose / Semi-Synthetic Media |
| Gasket Material | High-Temp Nitrile (NBR) |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser Mobilair (Portable) | M 13, M 15, M 17 |
| Kaeser M Series | M 20 (Varian tertentu tergantung model mesin) |
| Engine Compatibility | Sering diaplikasikan pada unit dengan mesin Kubota atau mesin bensin Honda |
| Aplikasi Khusus | Unit Air-Cooled kecil dan sistem udara tekan bengkel (workshop) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 8.9315.0 |
| Mann-Filter | W 77 |
| Hifi Filter | SO 6105 |
| Donaldson | P550173 |
| Baldwin | B179 |
| Fleetguard | LF3692 |
| Wix | 51358 |
