Deskripsi

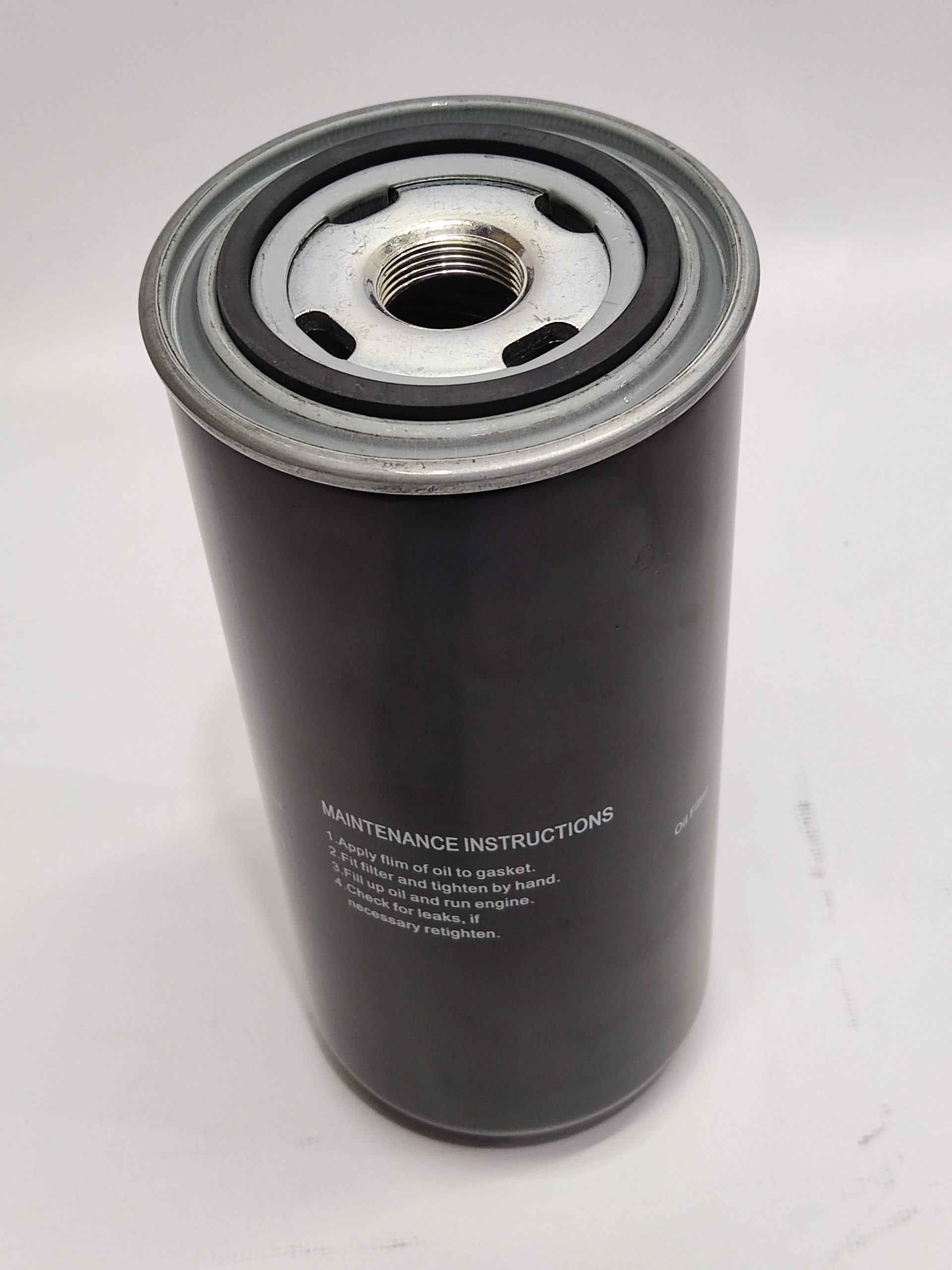

Kaeser Oil Filter 6.3464.1
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.3464.1 (Revisi dari 6.3464.0) |
| Diameter Luar (OD) | 136 mm |
| Tinggi Total (Height) | 302 mm |
| Ukuran Ulir (Thread) | 1 1/2-16 UN |
| Tipe Filter | Spin-On (Heavy Duty) |
| Tekanan Kerja Nominal | 14 – 16 Bar |
| Tekanan Maksimum (Burst) | 25+ Bar |
| Bypass Valve | Terintegrasi (Mencegah terputusnya aliran oli ke rotor) |
| Media Filtrasi | Advanced Synthetic Micro-Glass |
| Gasket Material | High-Temp Fluorocarbon / Viton (Tahan panas ekstrem) |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser DSD Series | DSD 142, DSD 172, DSD 202, DSD 238, DSD 240, DSD 281 |
| Kaeser DSDX Series | DSDX 243, DSDX 302, DSDX 305 |
| Kaeser ESD Series | ESD 300, ESD 350, ESD 441, ESD 442 |
| Kaeser FSD Series | FSD 571, FSD 621 |
| Varian Khusus | Sangat direkomendasikan untuk varian SFC (Speed Frequency Control) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.3464.1 |
| Mann-Filter | WD 13 145 / 4 |
| Hifi Filter | SH 62020 |
| Sotras | SH 8111 |
| Donaldson | P550425 |
| Baldwin | B7225 |
| Wix | 51735 |
