Deskripsi

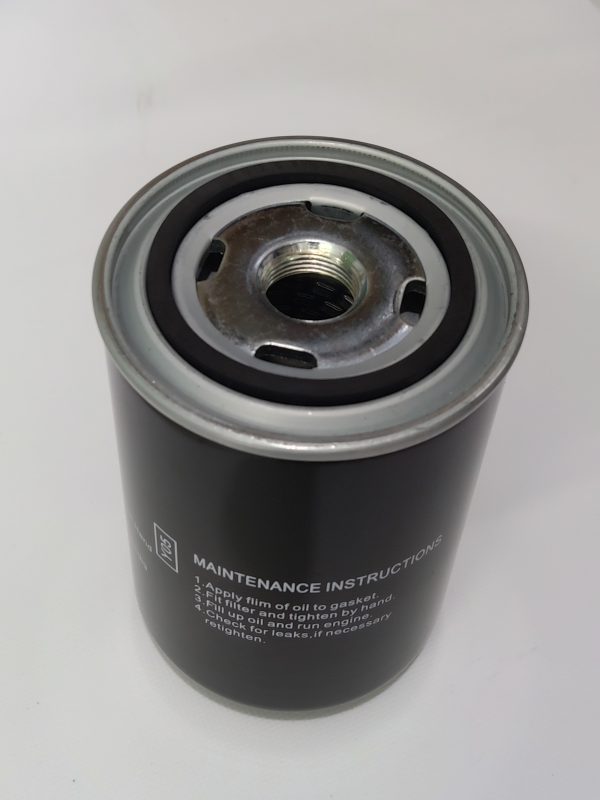

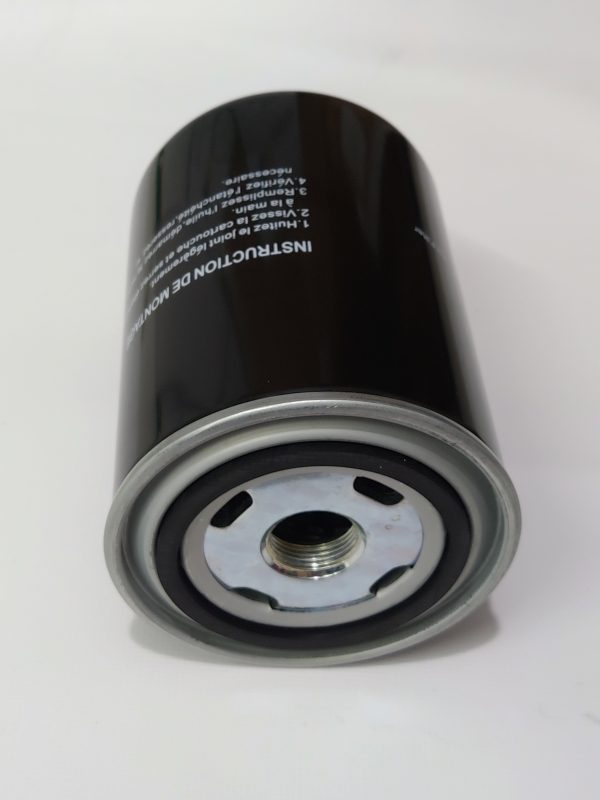

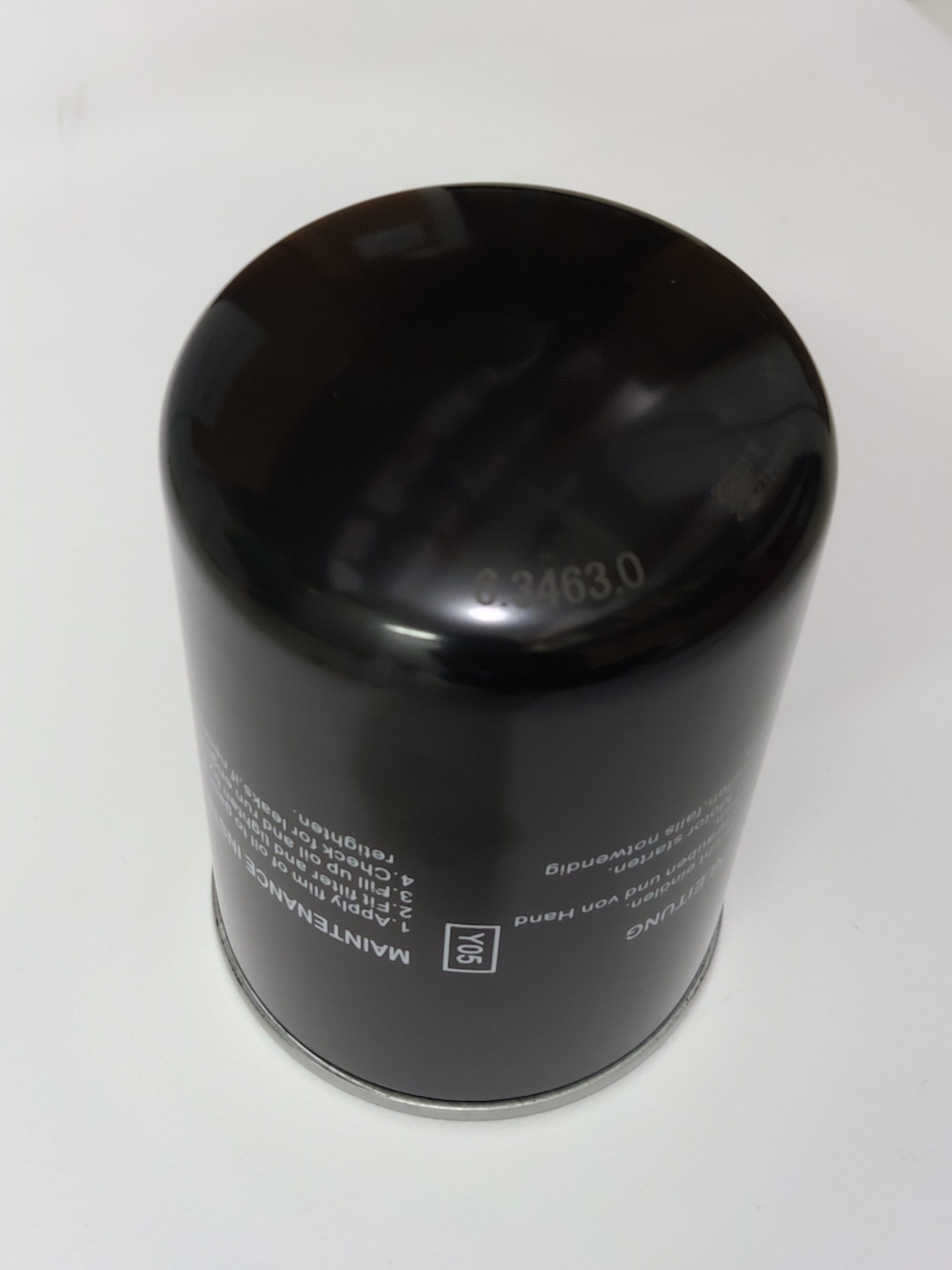

Kaeser Oil Filter 6.3463.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.3463.0 (6.3463.1 / 6.3463.E1) |
| Diameter Luar (OD) | 108 mm |
| Tinggi Total (Height) | 260 mm |
| Ukuran Ulir (Thread) | 1 1/8-16 UN |
| Tipe Filter | Spin-On (Cartridge Kaleng) |
| Tekanan Kerja Nominal | 14 Bar |
| Tekanan Maksimum (Burst) | 25 Bar |
| Bypass Valve | Terintegrasi (Mencegah hambatan aliran saat oli dingin/kental) |
| Media Filtrasi | High-Efficiency Micro-Glass / Synthetic Media |
| Gasket Material | High-Temp Nitrile (Tahan panas dan kompatibel dengan oli sintetik) |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser BSD Series | BSD 62, BSD 65, BSD 72, BSD 75, BSD 81 |
| Kaeser CSD Series | CSD 82, CSD 85, CSD 102, CSD 105, CSD 122, CSD 125 |
| Kaeser CSDX Series | CSDX 137, CSDX 140, CSDX 162, CSDX 165 |
| Kaeser DSD Series | DSD 142, DSD 172, DSD 202, DSD 238 |
| Kaeser M Series (Portable) | M 100, M 121, M 122, M 123, M 135 |
| Varian Khusus | Kompatibel untuk model standar, varian T (Dryer), dan SFC |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.3463.0 |
| Mann-Filter | WD 11 145 / 4 |
| Hifi Filter | SH 62018 |
| Sotras | SH 8109 |
| Donaldson | P550422 |
| Baldwin | B7221 |
| Wix | 51731 |
