Deskripsi

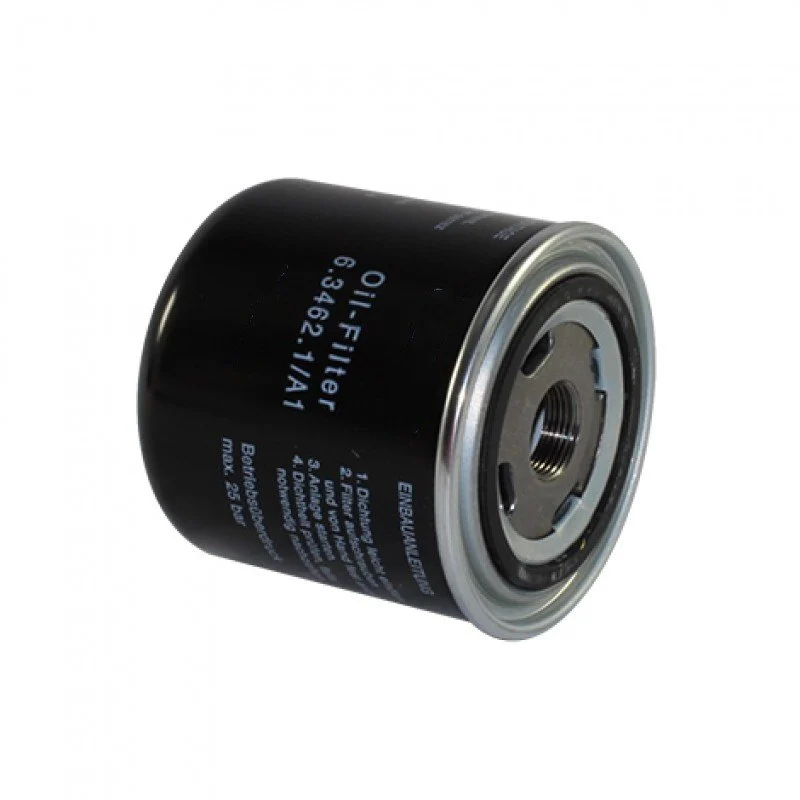

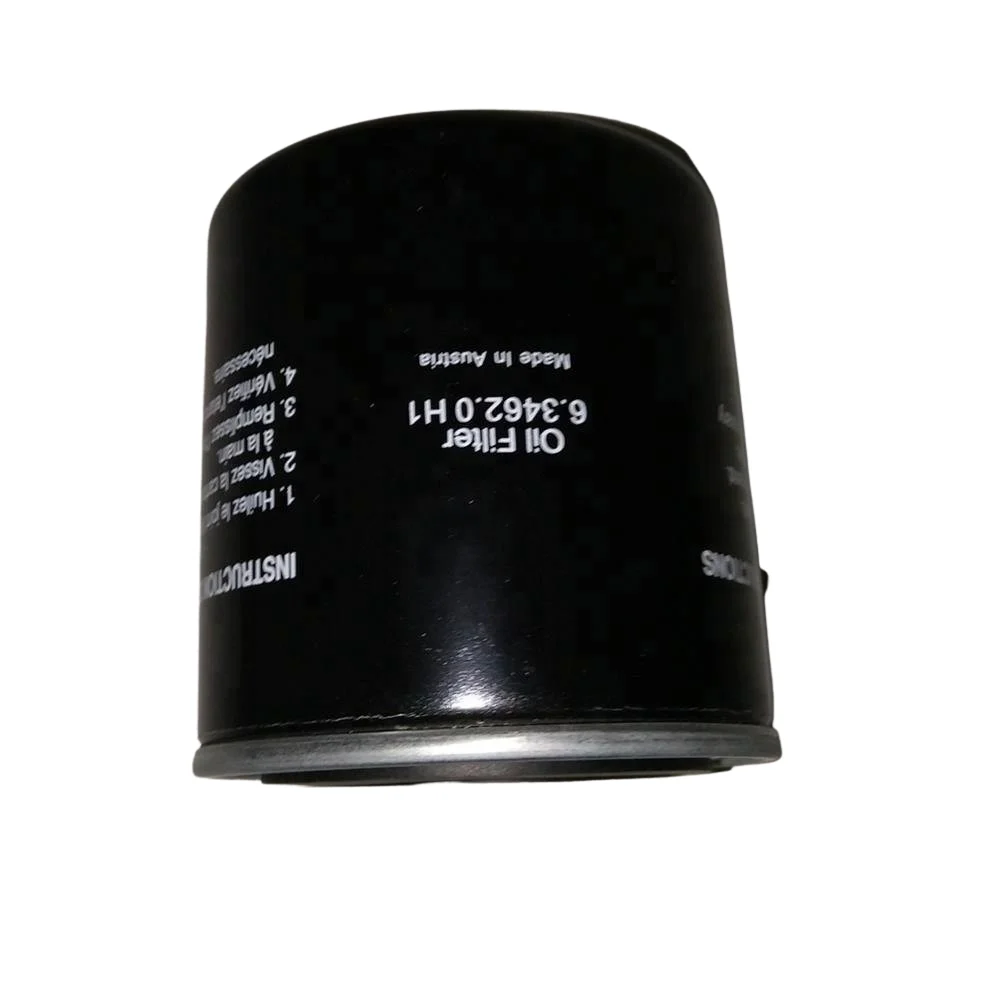

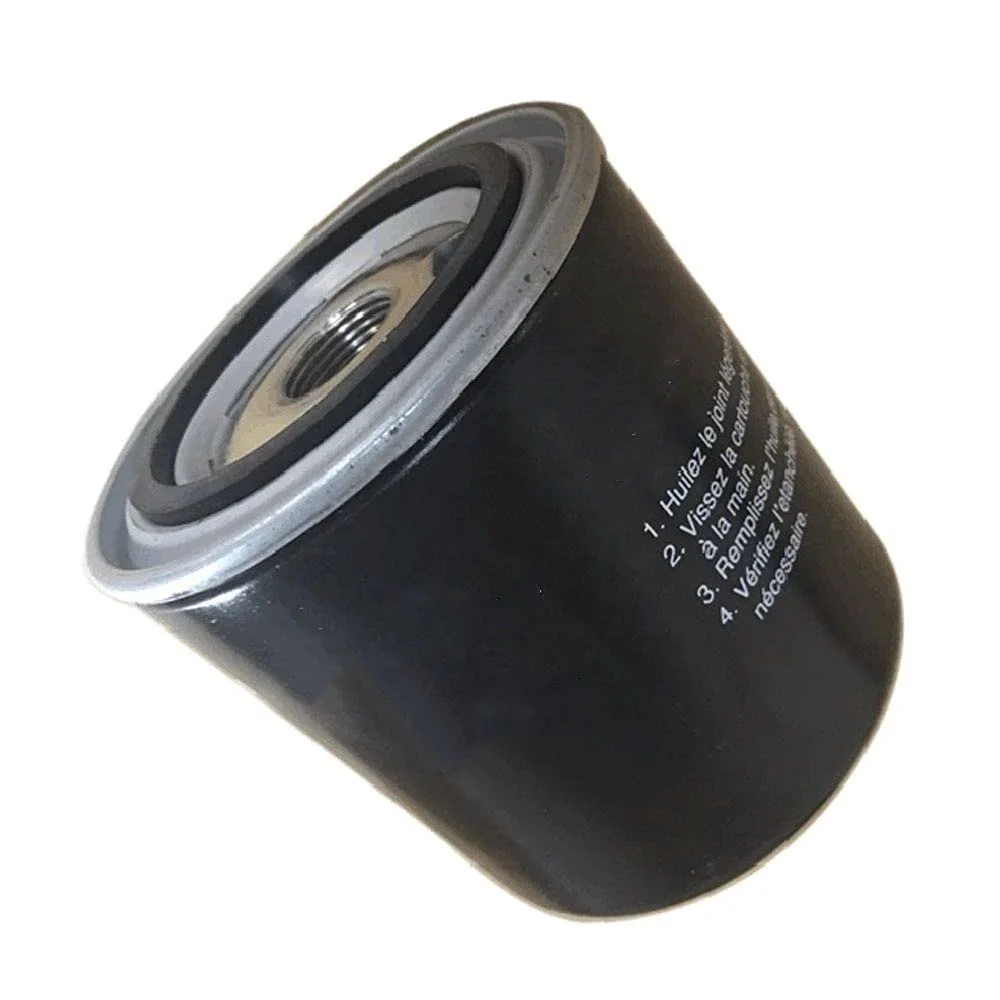

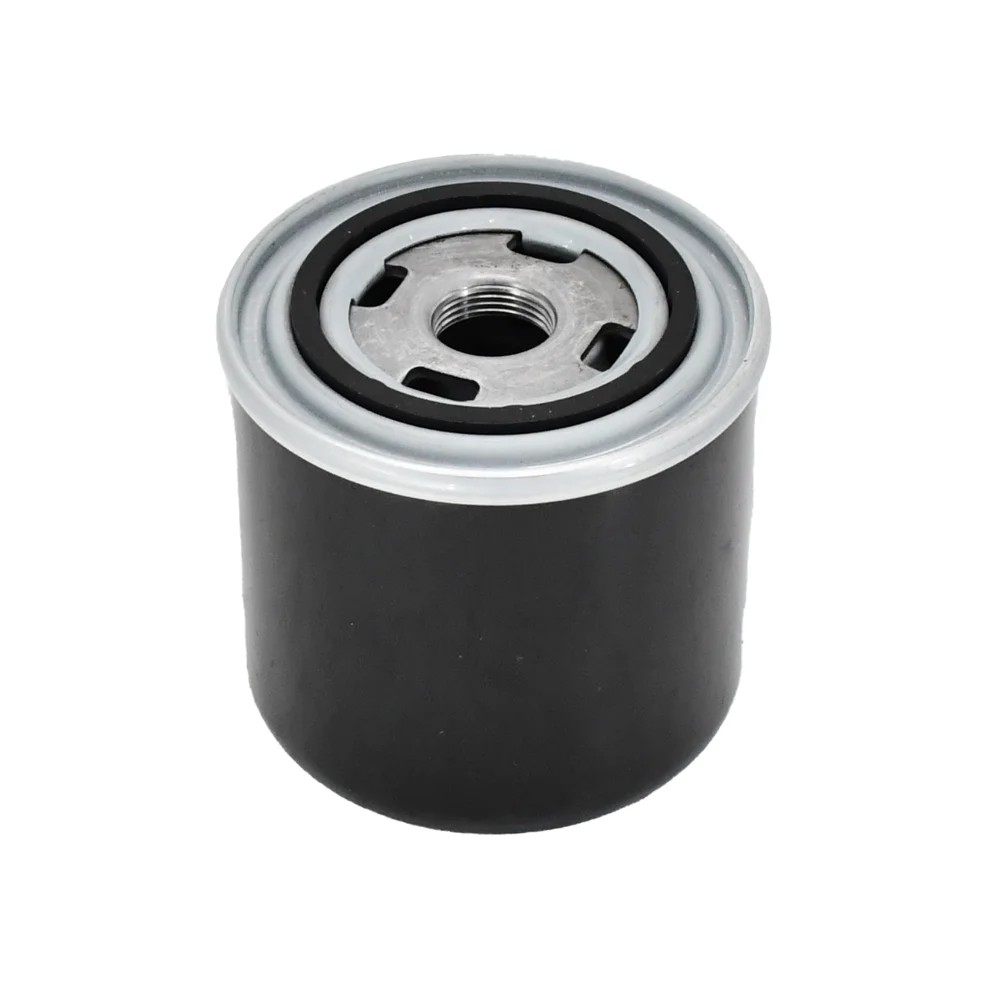

Kaeser Oil Filter 6.3462.1
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.3462.1 |
| Diameter Luar (OD) | 108 mm |
| Tinggi Total (Height) | 262 mm |
| Ukuran Ulir (Thread) | 1 1/8-16 UN |
| Tipe Filter | Spin-On (Full Flow) |
| Tekanan Kerja Nominal | 14 – 18 Bar |
| Tekanan Maksimum (Burst) | 25 Bar |
| Bypass Valve | Terintegrasi (2.5 Bar) |
| Media Filtrasi | High-Efficiency Micro-Glass / Fiberglass |
| Gasket Material | High-Temp Viton / Nitrile |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser BSD Series | BSD 62, BSD 72, BSD 75, BSD 81 |
| Kaeser CSD Series | CSD 82, CSD 85, CSD 102, CSD 105, CSD 122, CSD 125 |
| Kaeser DSD Series | DSD 141, DSD 142, DSD 171, DSD 201 (Tergantung Tahun) |
| Varian Khusus | Kompatibel untuk model standar, T (Dryer), dan SFC (Inverter) |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.3462.1 |
| Mann-Filter | WD 11 004 / WD 11 005 |
| Hifi Filter | SH 62054 |
| Sotras | SH 8101 |
| Donaldson | P550616 |
| Baldwin | BT8420 |
| Fleetguard | LF16120 |
