Deskripsi

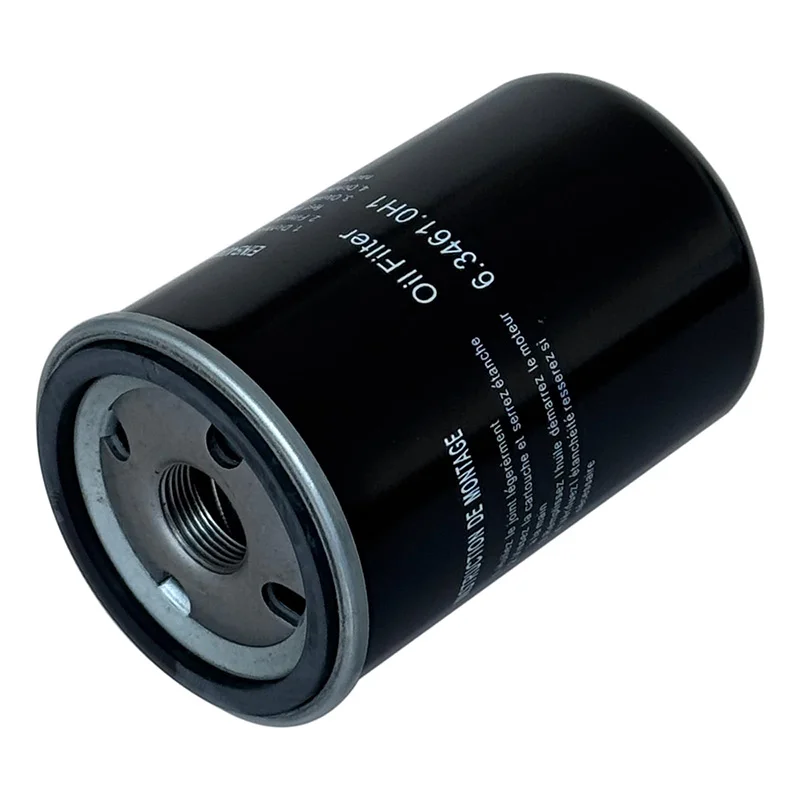

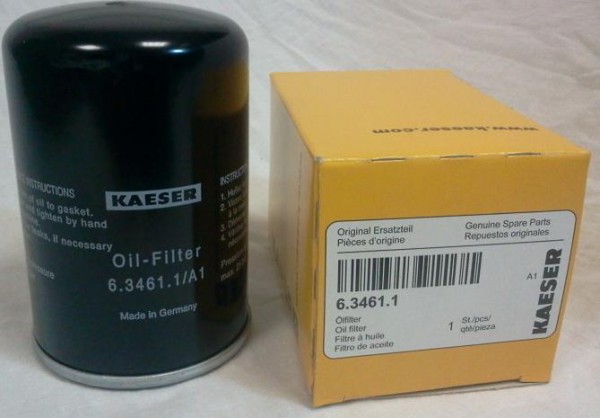

Kaeser Oil Filter 6.3461.1
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.3461.1 |
| Diameter Luar (OD) | 108 mm |
| Tinggi Total (Height) | 170 mm |
| Ukuran Ulir (Thread) | 1 1/8-16 UN |
| Tipe Filter | Spin-On (Full Flow) |
| Tekanan Kerja Nominal | 14 – 18 Bar |
| Bypass Valve | Terintegrasi (± 2.5 Bar) |
| Media Filtrasi | High-Efficiency Glass Fiber / Micro-Glass |
| Gasket Material | High-Temp Nitrile (NBR) / Viton |
| Fungsi Utama | Proteksi komponen Air End dari partikel mikron |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser BSD Series | BSD 62, BSD 72, BSD 75 |
| Kaeser CSD Series | CSD 82, CSD 85, CSD 102, CSD 105 |
| Kaeser AS Series | Varian tertentu (Tergantung Tahun Produksi) |
| Aplikasi Khusus | Unit stasioner dengan sistem pendingin oli eksternal |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.3461.1 |
| Mann-Filter | WD 11 001 |
| Hifi Filter | SH 62052 |
| Sotras | SH 8116 |
| Donaldson | P550616 (Varian Pendek) |
| Baldwin | BT8422 |
| Fleetguard | LF16117 |
