Deskripsi

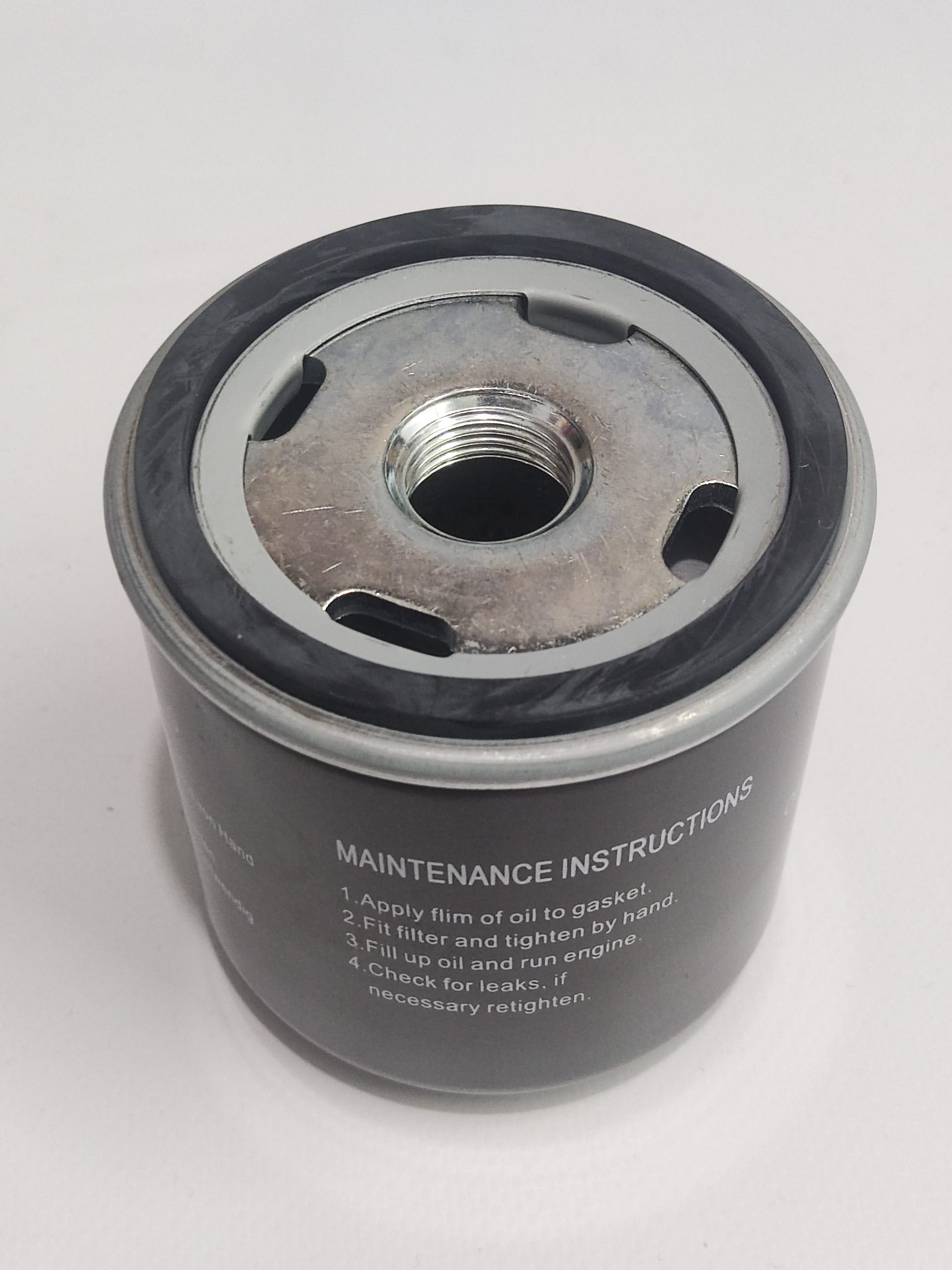

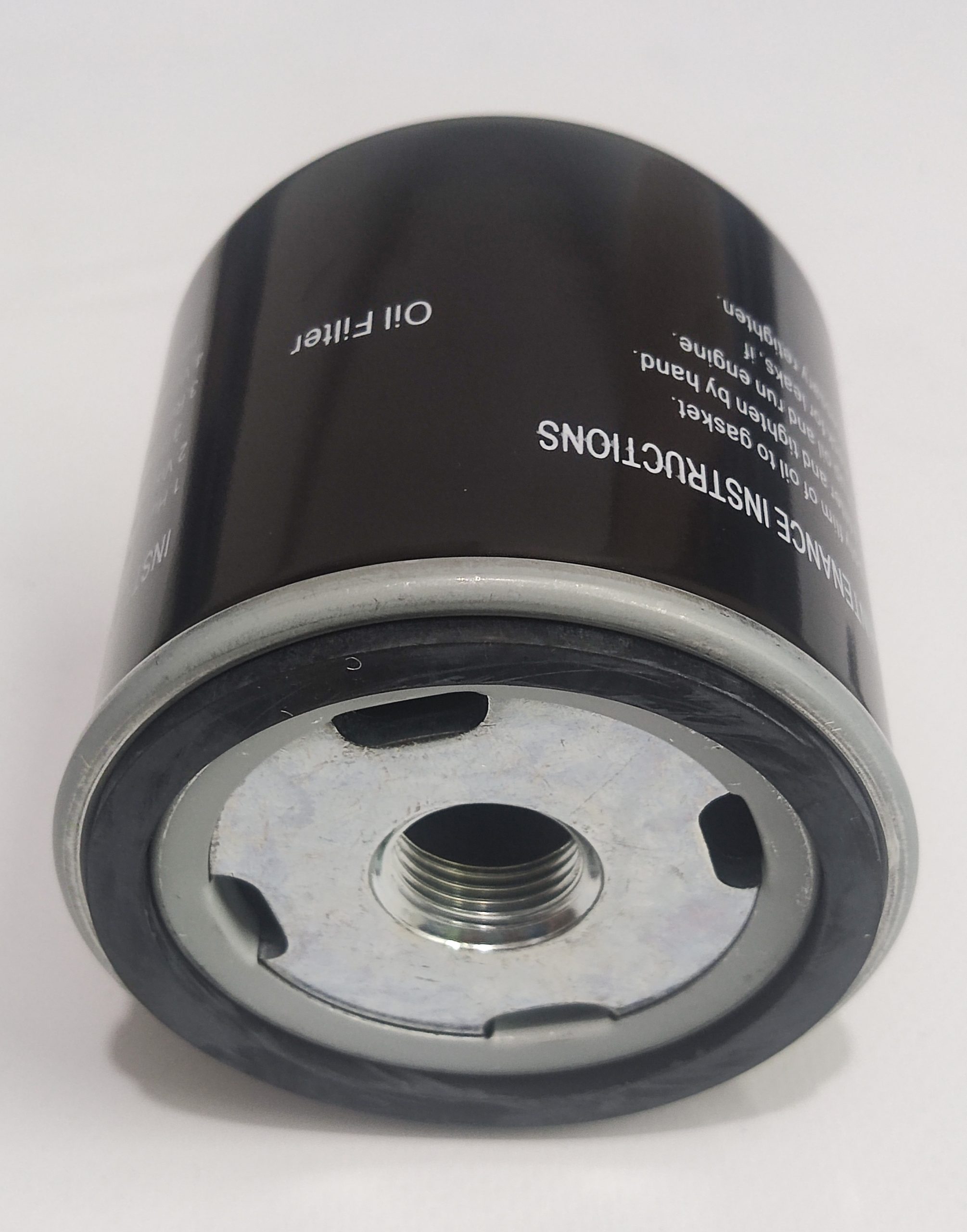

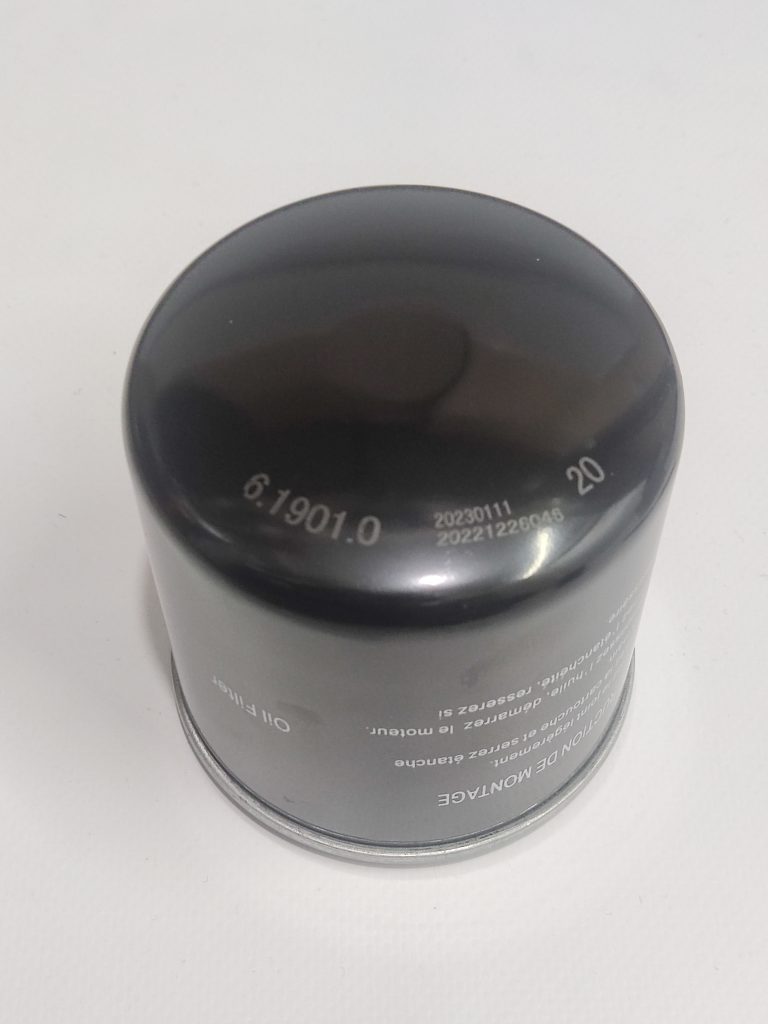

Kaeser Oil Filter 6.1901.0
Spesifikasi Teknis Produk
| Parameter | Detail Spesifikasi |
| Nomor Part Asli (OEM) | 6.1901.0 (6.1901.1/E/A1) |
| Diameter Luar (OD) | 93 mm |
| Tinggi Total (Height) | 142 mm |
| Ukuran Ulir (Thread) | 1-12 UNF |
| Tipe Filter | Spin-On |
| Tekanan Kerja Nominal | 14 Bar |
| Tekanan Maksimum (Burst) | 20+ Bar |
| Bypass Valve | Terintegrasi (± 2.0 – 2.5 Bar) |
| Media Filtrasi | Glass Fiber / High-Grade Cellulose |
| Gasket Material | Viton / Nitrile (Tahan suhu tinggi dan oli sintetik) |
Kesesuaian Unit (Compatibility)
| Seri Kompresor | Model Spesifik |
| Kaeser SX Series | SX 3, SX 4, SX 6, SX 8 |
| Kaeser SXC Series | SXC 3, SXC 4, SXC 6, SXC 8 |
| Kaeser SM Series | SM 6, SM 8, SM 9, SM 11, SM 12, SM 15 |
| Kaeser SK Series | SK 18, SK 19, SK 21, SK 22, SK 25, SK 26 |
| Kaeser ASK Series | ASK 27, ASK 32, ASK 35 |
| Kaeser M Series | M 20, M 24, M 26, M 27, M 31 |
Daftar Persamaan Part (Cross Reference)
| Manufaktur / Brand | Nomor Part (Equivalence) |
| KAESER (Original) | 6.1901.0 |
| Mann-Filter | W 940/5 |
| Hifi Filter | SH 62015 |
| Sotras | SH 8114 |
| Donaldson | P550400 |
| Baldwin | BT8307-MPG |
| Wix | 51551 |
