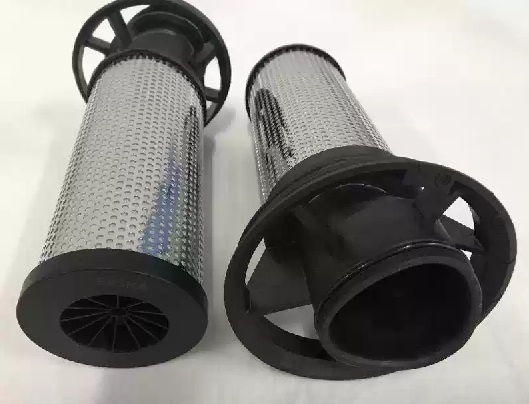

Kaeser Filter Element 901565.0
1. Spesifikasi Teknis (Technical Specifications)
| Parameter | Spesifikasi Detail |
|---|---|
| Nomor Bagian (Part Number) | 901565.0 |
| Model / Tipe Elemen | E83ACT (Activated Carbon) |
| Fungsi Utama | Adsorption (Penghilang Uap & Bau) |
| Sisa Kandungan Minyak | ≤ 0.003 mg/m³ |
| Material Media | Lapisan Karbon Aktif (Activated Carbon) |
| Tinggi Keseluruhan | 222 mm |
| Diameter Luar | 89 mm |
| Sistem Pengunci | Bayonet Lock |
| Pre-filtration Required | Harus didahului filter Grade KE atau KD |
2. Kompatibilitas Unit (Compatibility Unit)
| Kategori Unit | Seri / Model yang Kompatibel |
|---|---|
| Filter Housing | Kaeser F-Series (Model F83) |
| Konfigurasi Filter | F83ACT (Housing F83 + Elemen E83ACT) |
| Air Compressor | Seri ASK, ASD, BSD (Dengan sistem pengolahan udara bersih) |
| Refrigeration Dryers | Seri Secotec (Tahap filtrasi akhir) |
| Aplikasi Khusus | Industri Makanan, Farmasi, dan Dental |
| Air Treatment | Modul Kryocontrol dan K-Max |
3. Cross Reference (Unique Alternative)
| Produsen / Brand | Part Number Alternatif / Setara |
|---|---|
| Kaeser (Tipe) | E83ACT |
| FridayParts | 901565.0-F83ACT |
| Omega Air | 1901565.0 |
| Kaeser (Fine Filter) | 901525.0 (E83KE – Pra-syarat ACT) |
| Kaeser (Ultra Filter) | 901545.0 (E83KD – Pra-syarat ACT) |
