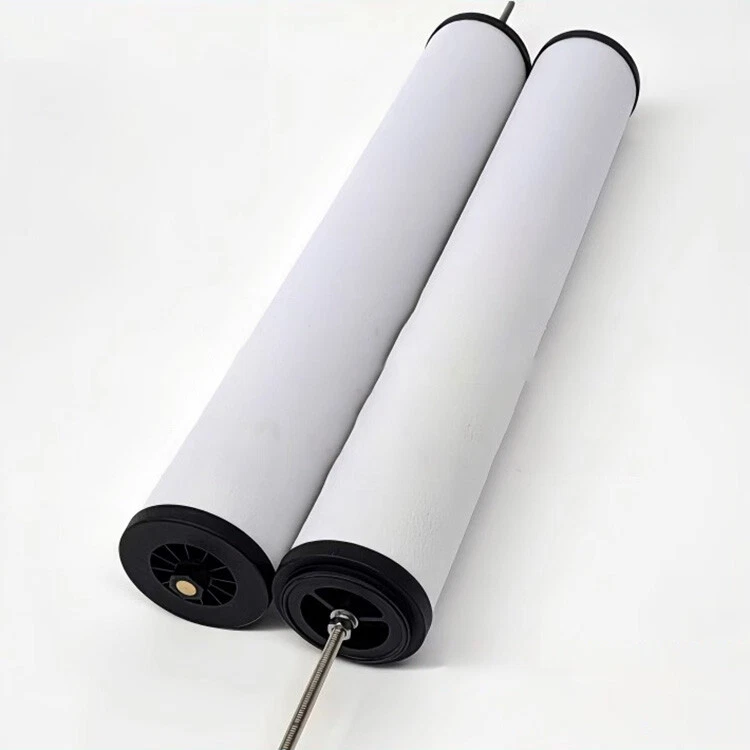

Kaeser Filter Element 9.9683.0
1. Spesifikasi Teknis Kaeser Filter Element 9.9683.0
| Fitur | Spesifikasi |
|---|---|
| Nomor Komponen (Part Number) | 9.9683.0 |
| Model / Tipe | E185KA (Activated Carbon Filter) |
| Produsen | Kaeser Kompressoren |
| Fungsi Utama | Penghilangan uap oli & bau (Oil vapor removal) |
| Sisa Kandungan Oli | 0.003 mg/m³ (pada 20°C) |
| Media Filter | Matriks Serat Karbon Aktif (Activated Carbon Fiber) |
| Temperatur Kerja Maksimum | 66 °C (Rekomendasi < 35 °C untuk efisiensi optimal) |
| Penurunan Tekanan (Dry Δp) | 0.07 bar |
| Arah Aliran | Dari Dalam ke Luar (Inside to Outside) |
| Dimensi (Est.) | Panjang: 700 mm | Diameter: 100 mm |
2. Kompabilitas Unit (Kaeser Filter Housing)
| Seri Kompresor Kaeser | Model Unit Kompatibel | Kapasitas Aliran Sistem |
|---|---|---|
| Seri CSD | CSD 85, CSD 105, CSD 125 | 8.2 – 12.0 m³/min |
| Seri CSDX | CSDX 140, CSDX 165 | 13.7 – 16.1 m³/min |
| Seri DSD | DSD 145, DSD 175, DSD 205 | 14.1 – 20.3 m³/min |
| Seri DSDX | DSDX 245, DSDX 305 | 24.3 – 30.2 m³/min |
| Seri SFC (VFD) | CSD 125 SFC, DSD 205 SFC | Variabel sesuai beban |
| Housing Filter Utama | Kaeser Filter Housing F185 | Max 18.5 m³/min (653 cfm) |
3. Cross Reference (Alternatif/Equivalent)
| Brand / Produsen | Nomor Referensi / Alternatif |
|---|---|
| Kaeser (OEM) | 9.9683.0 |
| Kaeser (Model Code) | E185KA |
| Omega Air | 19.9683.0 / A 185 KA |
| Hankison | E1-PV (Equivalent Class) |
| Walker Filtration | A185 XA (Similar Spec) |
| M-Plus | AC-185-E |
