Deskripsi

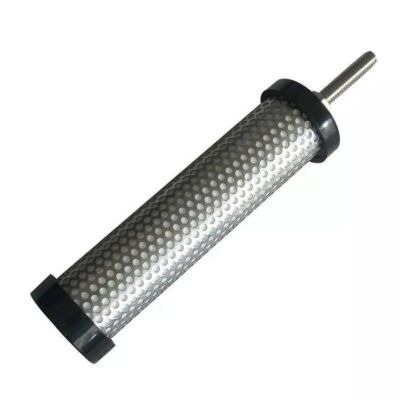

Kaeser Filter Element 9.4822.0
1. Spesifikasi Teknis (Technical Specifications)
| Parameter | Detail Spesifikasi |
|---|---|
| Part Number | 9.4822.0 |
| Tipe Elemen | E-B-185 (Particulate/Coalescing Filter) |
| Akurasi Filtrasi | 3.0 µm (Micron) / 5.0 µm (tergantung grade aplikasi) |
| Material Media | Cellulose / Fiberglass High Quality |
| Tinggi (Total) | ± 674 mm (26-7/16 inci) |
| Diameter Luar (OD) | ± 82.5 – 89 mm (3-1/4 inci) |
| Berat Net | 1.85 kg |
| Efisiensi | 99.99% |
| Tekanan Maksimum | Hingga 40 barg (tergantung housing) |
| Masa Pakai | 2.000 – 4.000 jam (tergantung kondisi inlet) |
2. Kompatibilitas Unit (Compatibility Unit)
| Kategori Unit | Seri / Model yang Kompatibel |
|---|---|
| Filter Housing | Kaeser Inline Filter Series (Model F184 ke atas) |
| Air Compressor | Kaeser Rotary Screw Compressor (Sistem treatment udara eksternal) |
| Dryer Integration | Seri Secotec dan Desiccant Dryers seri DC (Sebagai after-filter) |
| Sistem Treatment | Modul pemurni udara industri umum |
| Aplikasi Industri | Otomotif, Elektronik, Farmasi, dan Pengecatan |
3. Cross Reference (Unique Alternative)
| Produsen / Brand | Part Number Alternatif / Setara |
|---|---|
| Kaeser (Lama/Alternatif) | 948220 / E-B-185 |
| Edmac | 9.4822.0 |
| FridayParts | 9.4822.0-EB185 |
| Mako Airtek | 9.4822.0 |
| Kaeser (Varian Lain) | 9.4834.0 / 9.4846.0 |
