Deskripsi

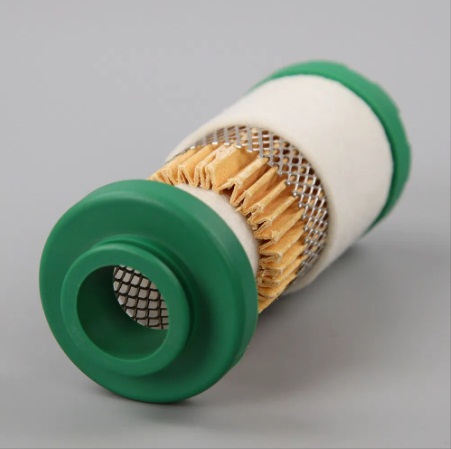

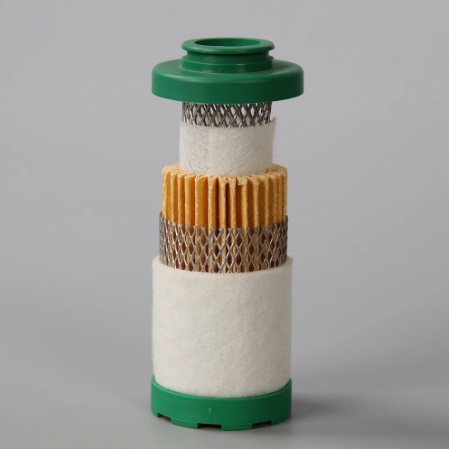

Kaeser Filter Element 9.4538.1
1. Spesifikasi Teknis Kaeser Filter Element 9.4538.1
| Fitur | Spesifikasi Detail |
|---|---|
| Nomor Part (PN) | 9.4538.1 |
| Model Element | E-G-31 (Tipe G – Grade G) |
| Tipe Filtrasi | Coalescing Filter (Penghilang uap minyak/partikel) |
| Tingkat Filtrasi | 0.01 hingga 1 Mikron (Tergantung grade aplikasi) |
| Efisiensi Filtrasi | 99.99% |
| Material Media | Borosilicate glass microfibers |
| Temperatur Maks. | 66°C (150°F) |
| Tekanan Kerja Maks. | 16 bar (232 psi) |
| Fitur Khusus | Stainless steel inner/outer support cores & foam sleeve |
2. Kompabilitas Unit (Kaeser Filter Housing)
| Kategori Unit | Model / Seri Unit yang Kompatibel |
|---|---|
| Kaeser Filter Housing | Seri G31 |
| Kaeser Filter Series | Seri F-Grade (F10 hingga F30 tertentu) |
| Kaeser Compressor | Seri Aircenter dan SK / AS (dengan filter internal) |
| Kaeser Dryers | Seri KRYOSEC dan TB/TA (sebagai filter pelindung) |
| Kapasitas Aliran | Cocok untuk unit dengan flow rate hingga 3.1 m³/min |
3. Cross Reference (Alternatif/Equivalent)
| Manufaktur | Nomor Part / Kode Referensi |
|---|---|
| KAESER (Original) | 9.4538.1 / 945381 |
| HIFI FILTER | SI 43501 |
| MANN & HUMMEL | 6750055232 |
| SF FILTER | SK 3584 |
| DONALDSON | P550410 (Equivalent grade) |
| OMEGA AIR | 19.4538.1 (Alternative) |
