Deskripsi

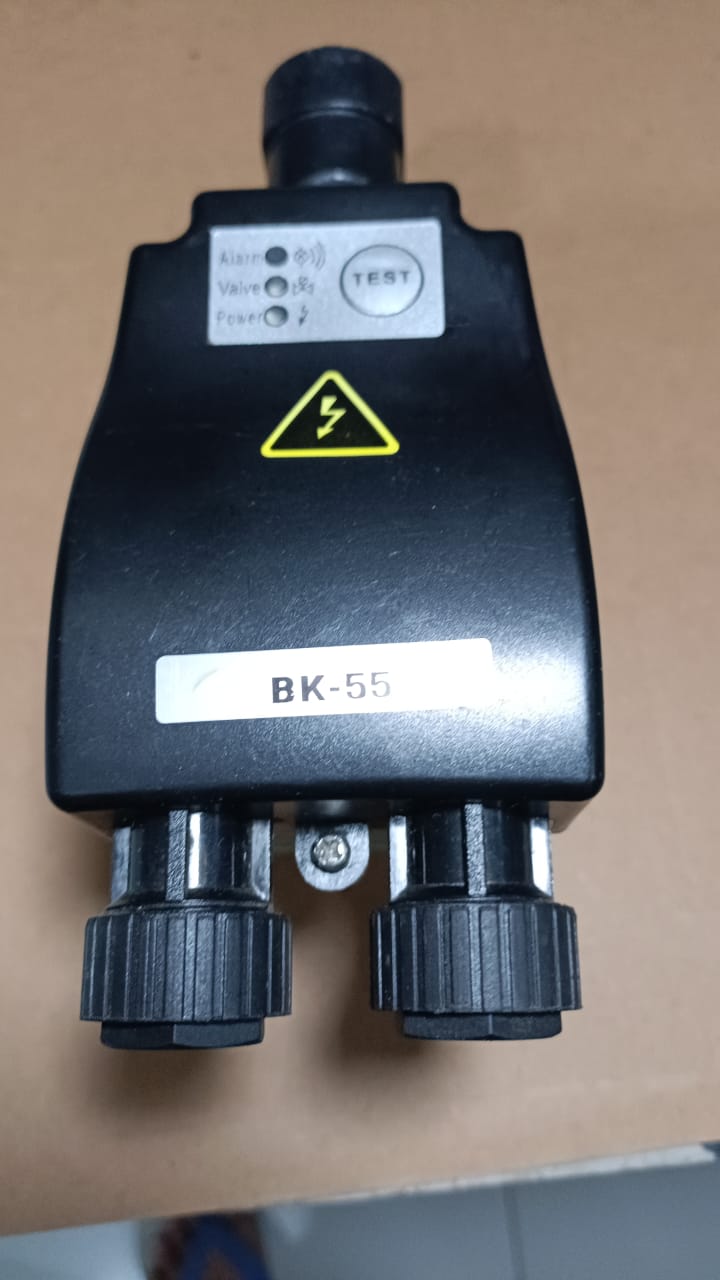

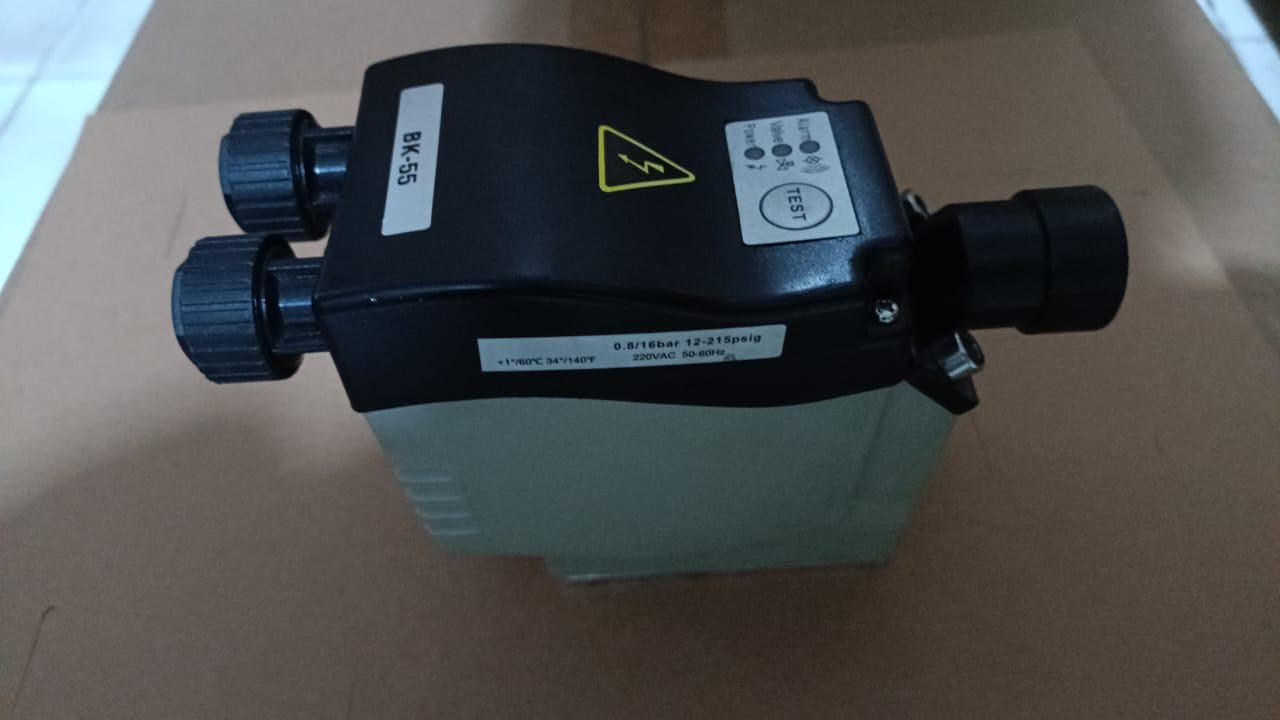

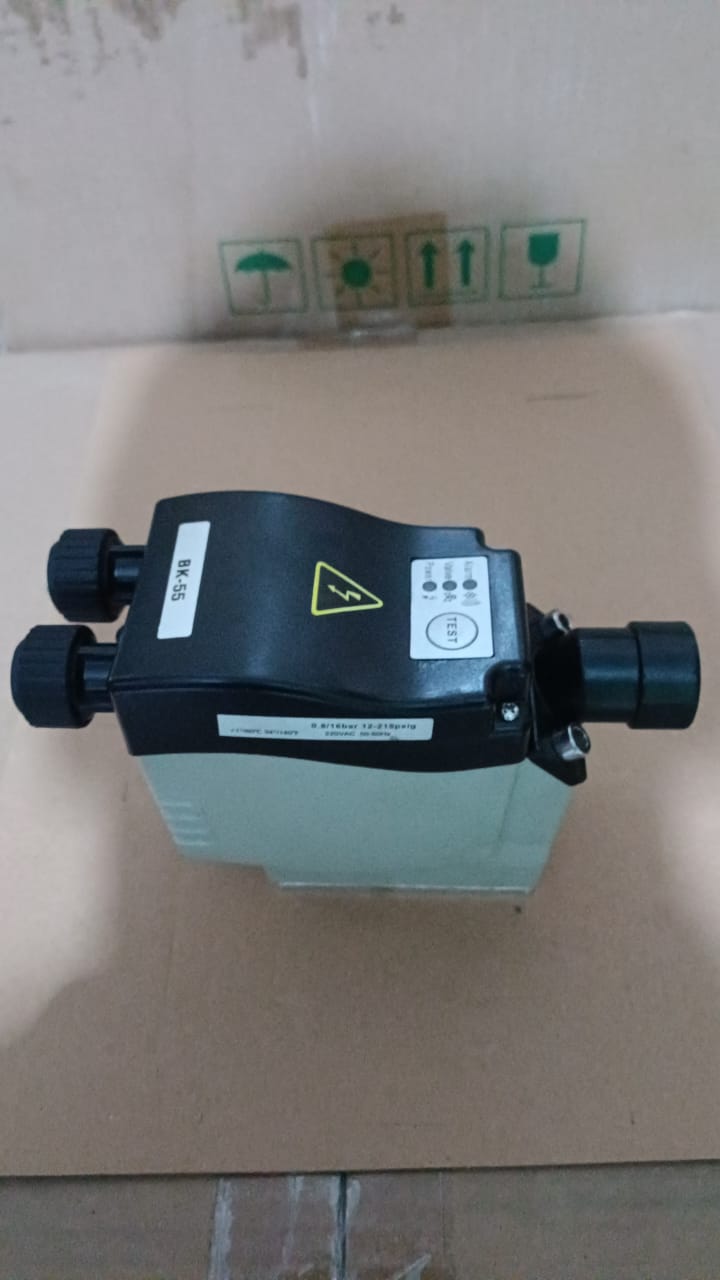

Auto Drain BK-55

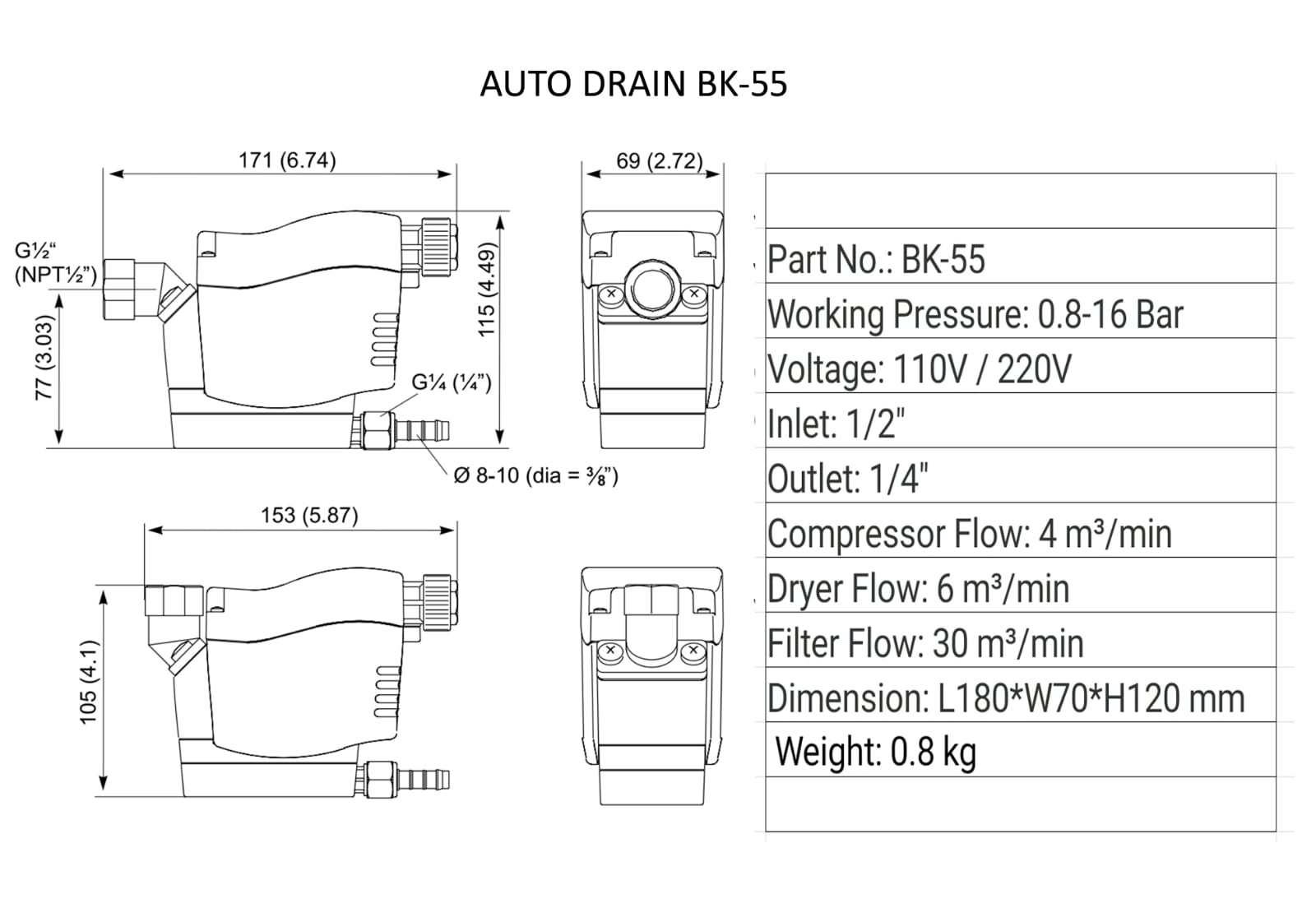

1. Spesifikasi Teknis (Technical Specifications)
| Fitur | Spesifikasi |
|---|---|
| Model | BK-DP-B (Timer Auto Drain) |
| Tipe | Solenoid Valve + Timer (Elektronik) |
| Material Body | Forged Brass (Kuningan) / Stainless Steel |
| Material Casing | Flame Retardant ABS Plastic |
| Tegangan (Voltage) | 220V AC (Standar), opsi 24V DC/AC, 110V AC |
| Waktu Interval (Off) | 0.5 hingga 45 Menit (Dapat diatur) |
| Waktu Emisi (On) | 0.5 hingga 10 Detik (Dapat diatur) |
| Tekanan Maksimum | 16 Bar / 232 PSI |
| Ambient Temperature | 2°C hingga 55°C |
| Suhu Fluida Maks | 90°C |
| Koneksi Port | 1/2″ NPT atau BSP (Inlet/Outlet) |
| Kelas Proteksi | IP65 |
2. Kompabilitas Unit (Unit Compatibility)
| Brand | Seri & Tipe Unit Kompresor yang Kompatibel |
|---|---|
| Atlas Copco | Seri GX: GX 2, GX 3, GX 4, GX 5, GX 7, GX 11. Seri GA: GA 5, GA 7, GA 11 (Unit kapasitas kecil). Seri Automan: Seluruh lini kompresor piston profesional Atlas Copco. |
| Kaeser | Seri SX: SX 3, SX 4, SX 6, SX 8. Seri SM: SM 9, SM 12, SM 15. Seri SK: SK 18, SK 22, SK 25. Aircenter: Unit stasiun udara terintegrasi berbasis seri SX s/d SK. |
| Ingersoll Rand | Seri UP6: UP6 5, UP6 7.5, UP6 10, UP6 15 (Kapasitas HP kecil). Seri R-Series: R2.2, R4, R5.5, R7.5, R11. |
| CompAir | Seri L (Screw): L02, L03, L04, L05, L07, L11. |
| Sullair | Seri ShopTek: ST 4, ST 5, ST 7, ST 11. Seri AS: AS 4, AS 5, AS 7, AS 11. |
| Lokal / Lainnya | Boreas: BK7 s/d BK100. Shark & Swan: Seri Piston dan Screw (High Pressure). |
3. Cross Reference & Alternatif (Accurate Cross Reference)
| Brand Original | Model Unit yang Digantikan oleh BK-55 |
|---|---|
| Atlas Copco | EWD 50 (Electronic Water Drain) |
| Kaeser | Eco-Drain 13 atau Eco-Drain 30 |
| Ingersoll Rand | ENL Series (Electronic No-Loss Drain) |
| CompAir | Internal Drainase bawaan L-Series |
| Jorc | Fluidrain / Optimum / Smart-Drain |
| Airnergy | BK-DP-B / BK-DP-A |
| SMC | Seri AD402 (Tipe Float) |
