Deskripsi

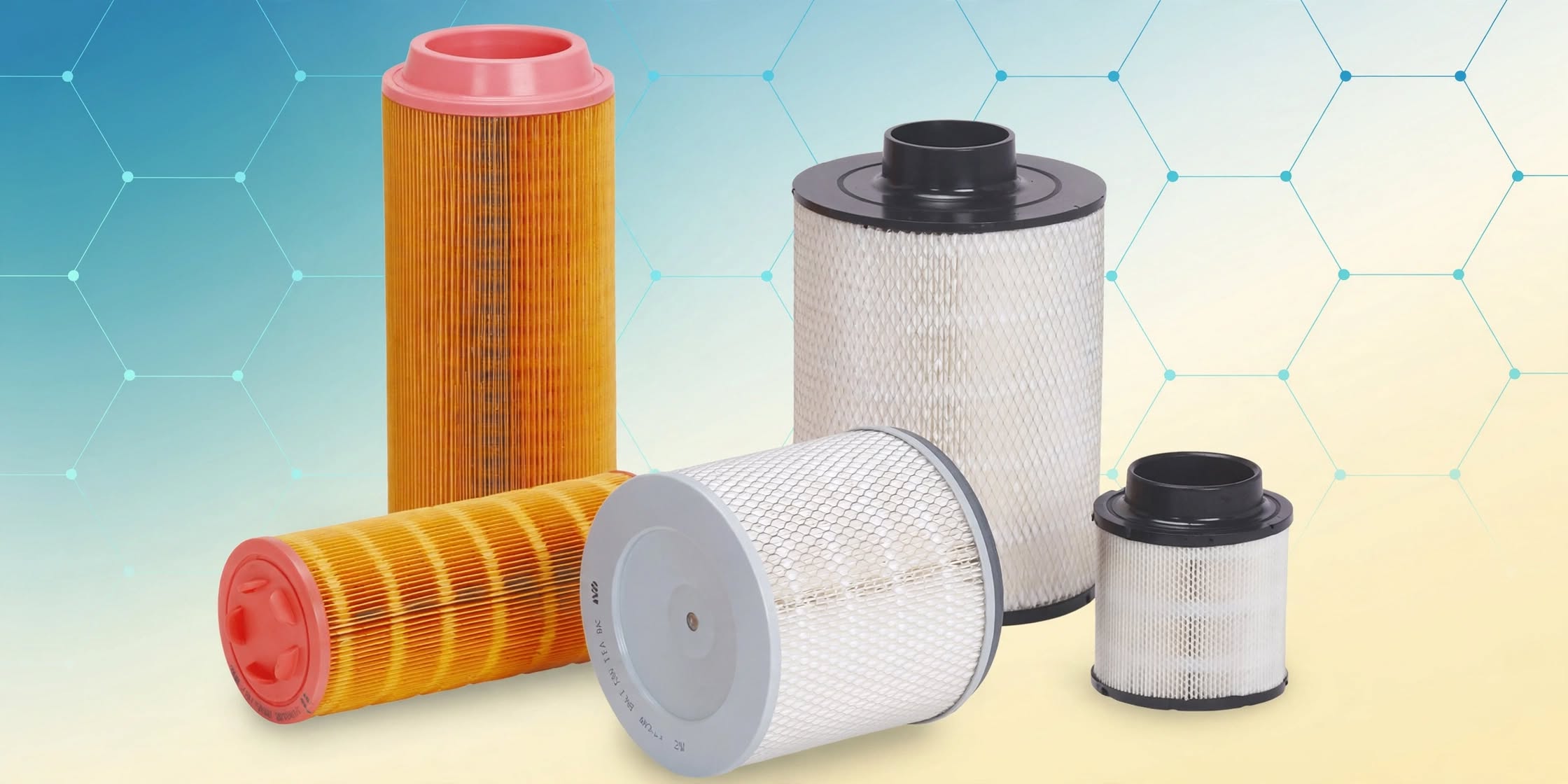

Hitachi Air Filter 59004040
1. Tabel Spesifikasi Teknis
| Parameter Spesifikasi | Detail Teknis Lengkap |
|---|---|
| Nomor Komponen OEM | 59004040 |
| Fungsi Utama | Air Intake / Suction Filter Cartridge |
| Tinggi Total (Height) | 415 mm |
| Diameter Luar (Outer Diameter – OD) | 248 mm |
| Diameter Dalam (Inner Diameter – ID) | 150 mm |
| Material Media Filtrasi | Kertas pulp kayu impor premium (Premium wood pulp paper) |
| Efisiensi Penyaringan | ≥ 99% |
| Struktur Desain | Dilengkapi sekat penyangga besi (With Clapboard) |
| Berat Bersih | ± 1,99 Kg |
2. Tabel Kompatibilitas Mesin (Compatibility)
| Seri Utama Kompresor | Seri Model Spesifik yang Kompatibel | Kapasitas Daya / HP |
|---|---|---|
| Hitachi OSP Series (75kW) | OSP-75S5AR, OSP-75S6AR, OSP-75M5AL, OSP-75M6AL | 75 kW / 100 HP |
| Hitachi OSP Next Series | OSP-75S5AI, OSP-75S6AI, OSP-75M5AL, OSP-75M6AL | 75 kW / 100 HP |
| Hitachi V-Type (Inverter) | OSP-75VAG1, OSP-75VARG1, OSP-100VAG1 | 75 kW – 100 kW |
| Hitachi Hiscrew High-Power | OSP-100S5AR, OSP-100S6AR | 100 kW / 135 HP |
3. Tabel Referensi Silang (Cross Reference)
| Merek / Manufaktur Filter Alternatif | Nomor Suku Cadang Silang (Cross Part Number) |
|---|---|
| Hitachi (Original OEM) | 59004040 |
| Mann & Hummel | C25860/5 / C25860/6 |
| Oxfil | AF.4147 |
| Mako Airtek | 59004040 |
| Sotras | SA 6920 |
